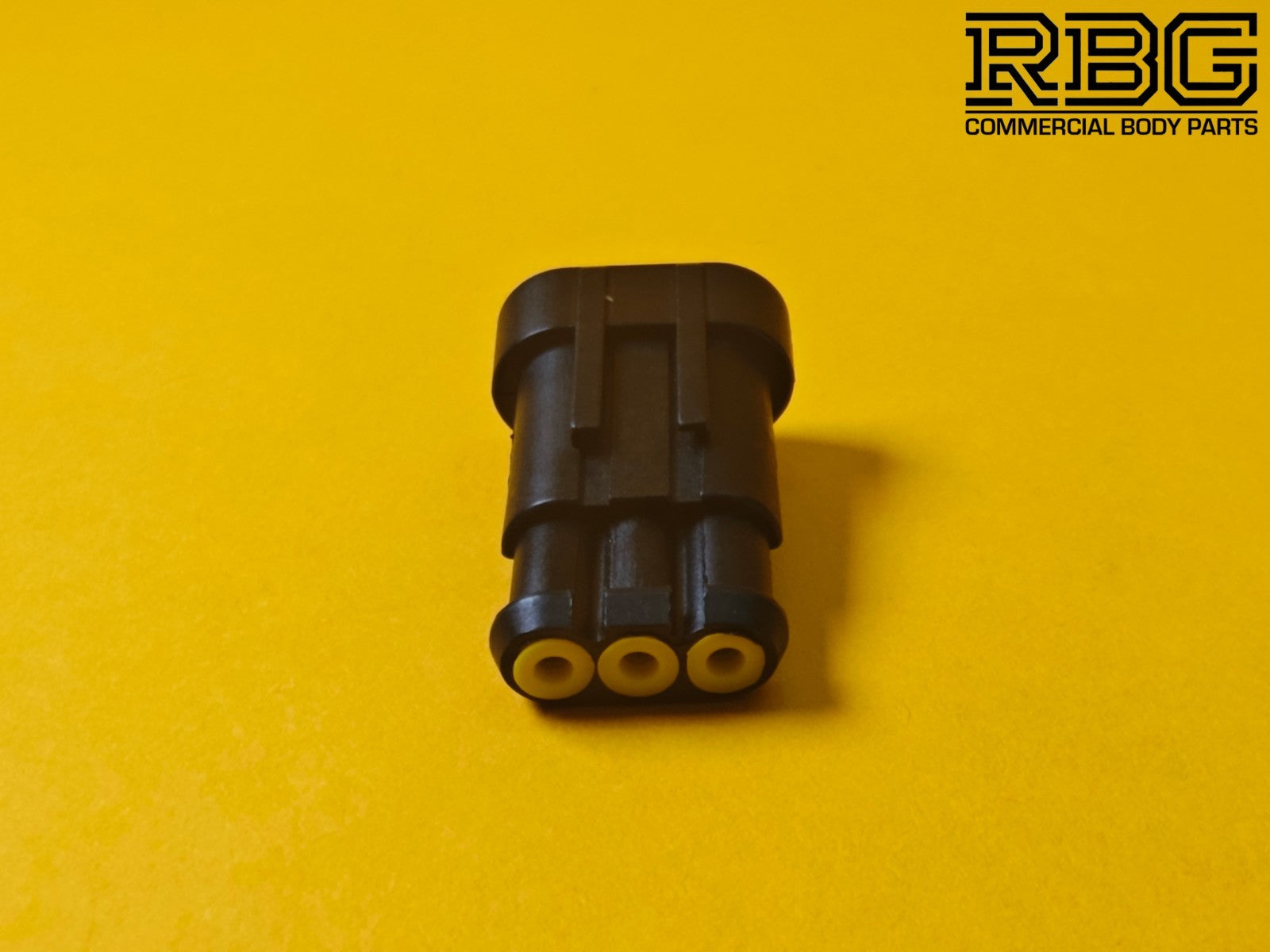

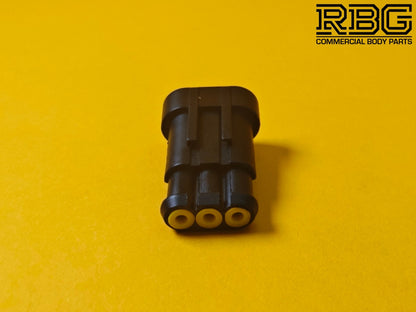

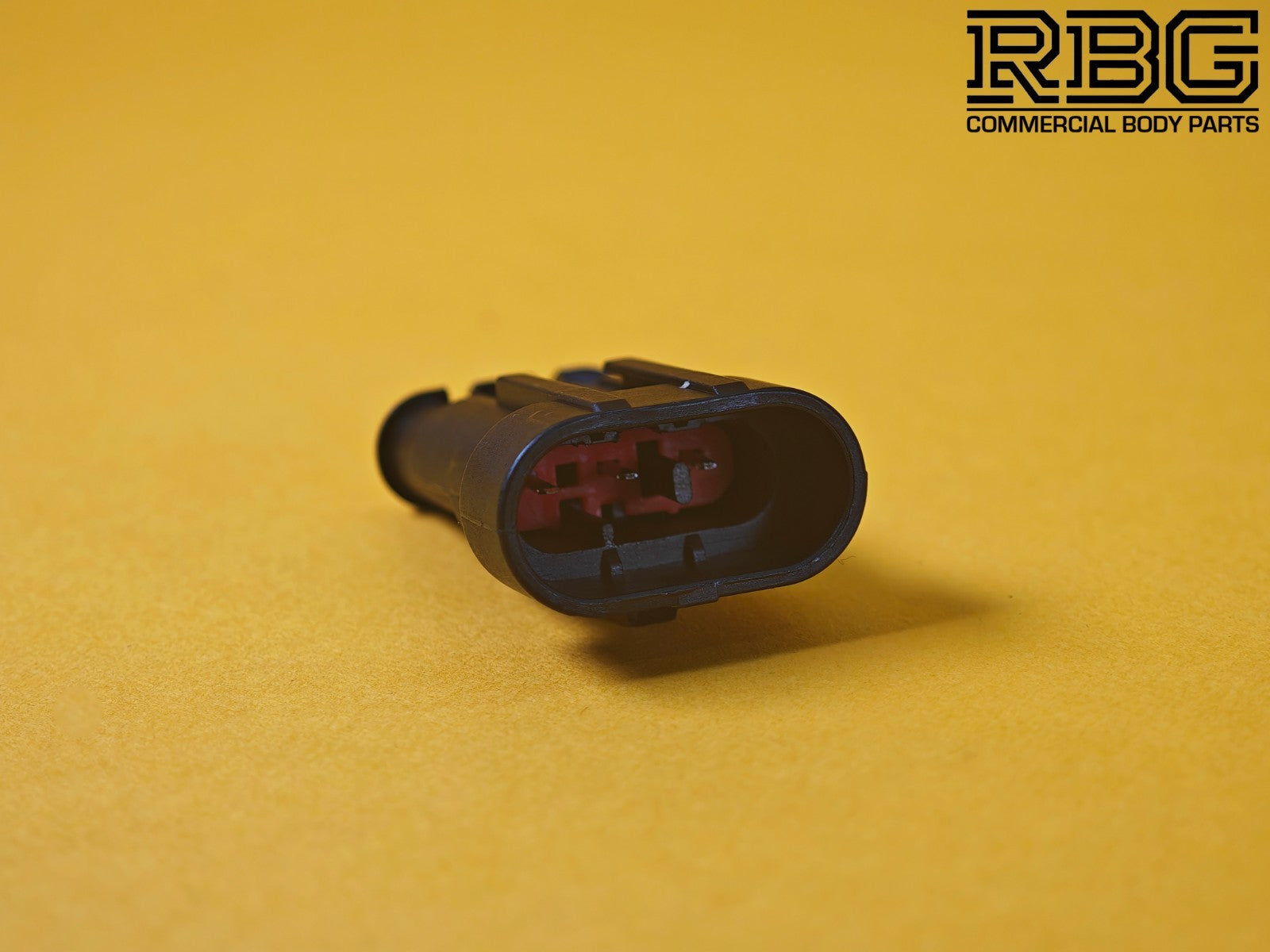

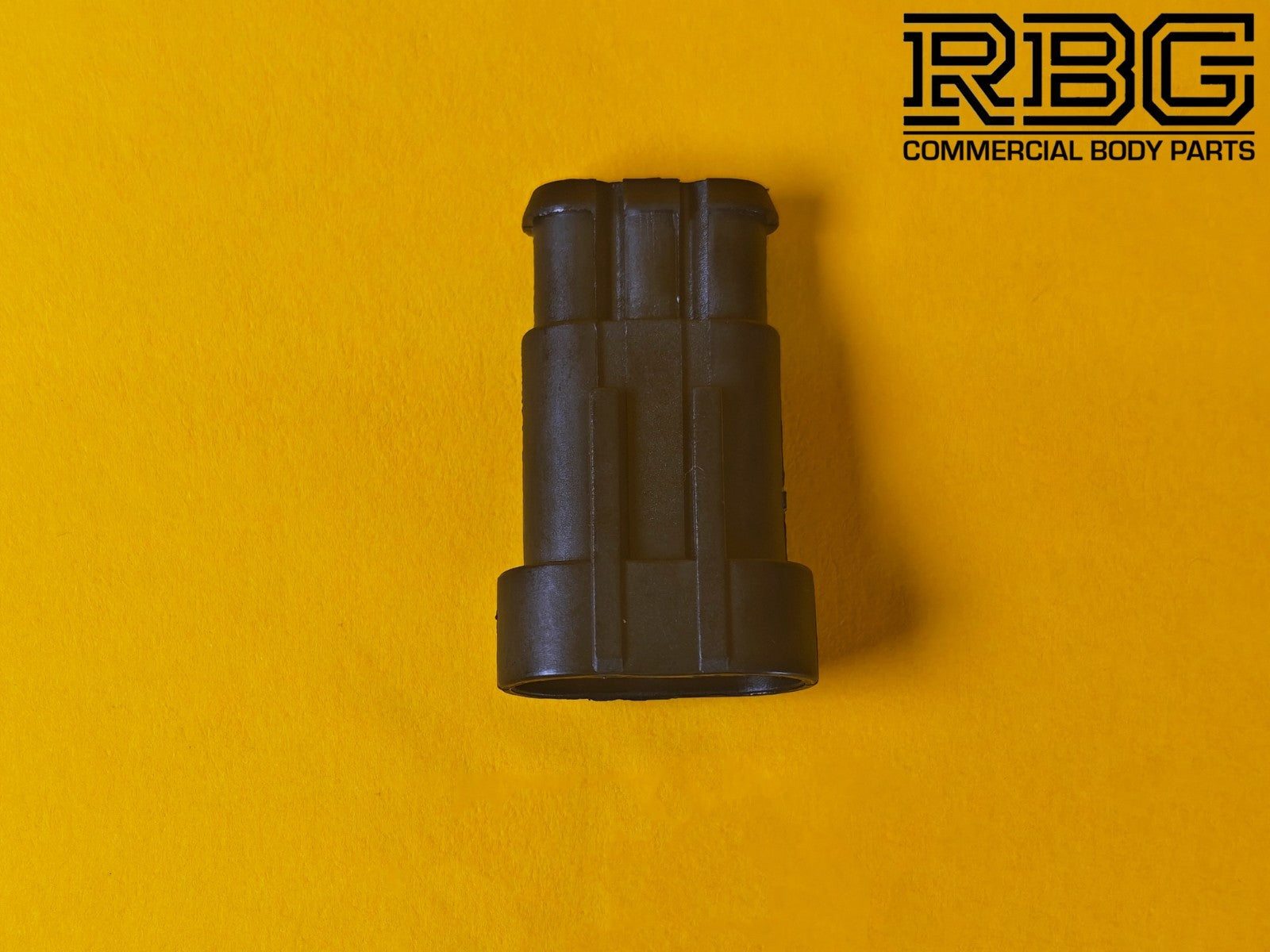

The SuperSeal 3-Way Female Plug Assembly is a compact, precision-moulded, environmentally sealed interface designed for high-reliability electrical terminations in demanding automotive, agricultural, marine, and industrial environments. Engineered to the SuperSeal 1.5 series standard, the connector provides robust ingress protection, vibration resistance, and stable contact performance across a wide thermal envelope.
The housing is manufactured from reinforced thermoplastic, incorporating an internal terminal-retention architecture that secures crimped contacts against pull-out and mechanical displacement. Silicone elastomer cable seals further enhance environmental resistance, enabling IP67 performance when assembled with correct conductor preparation and crimp geometry. The tin-plated terminals deliver low contact resistance and high conductivity, making the assembly suitable for power and signal circuits within 12/24-volt electrical systems.
Specifications- Connector Type: SuperSeal 3 Way (Female Housing)
- Gender: Female
- Number of Pins: 3
- Sealing Class: IP67-equivalent when correctly assembled
- Housing Material: High-temperature thermoplastic, black
- Terminal Material: Tinned Brass
- Seal Material: Silicone (Yellow)
- Wire Compatibility: 0.5–1.5 mm² (16–20 AWG) typical
- Operating Voltage: Suitable for 12V / 24V automotive systems
- Operating Conditions: Designed for resistance to moisture, dust, vibration, engine bay temperatures, and general vehicle environmental loads
- Typical Applications: Sensors, lighting circuits, control systems, general automotive electrical repairs and installations

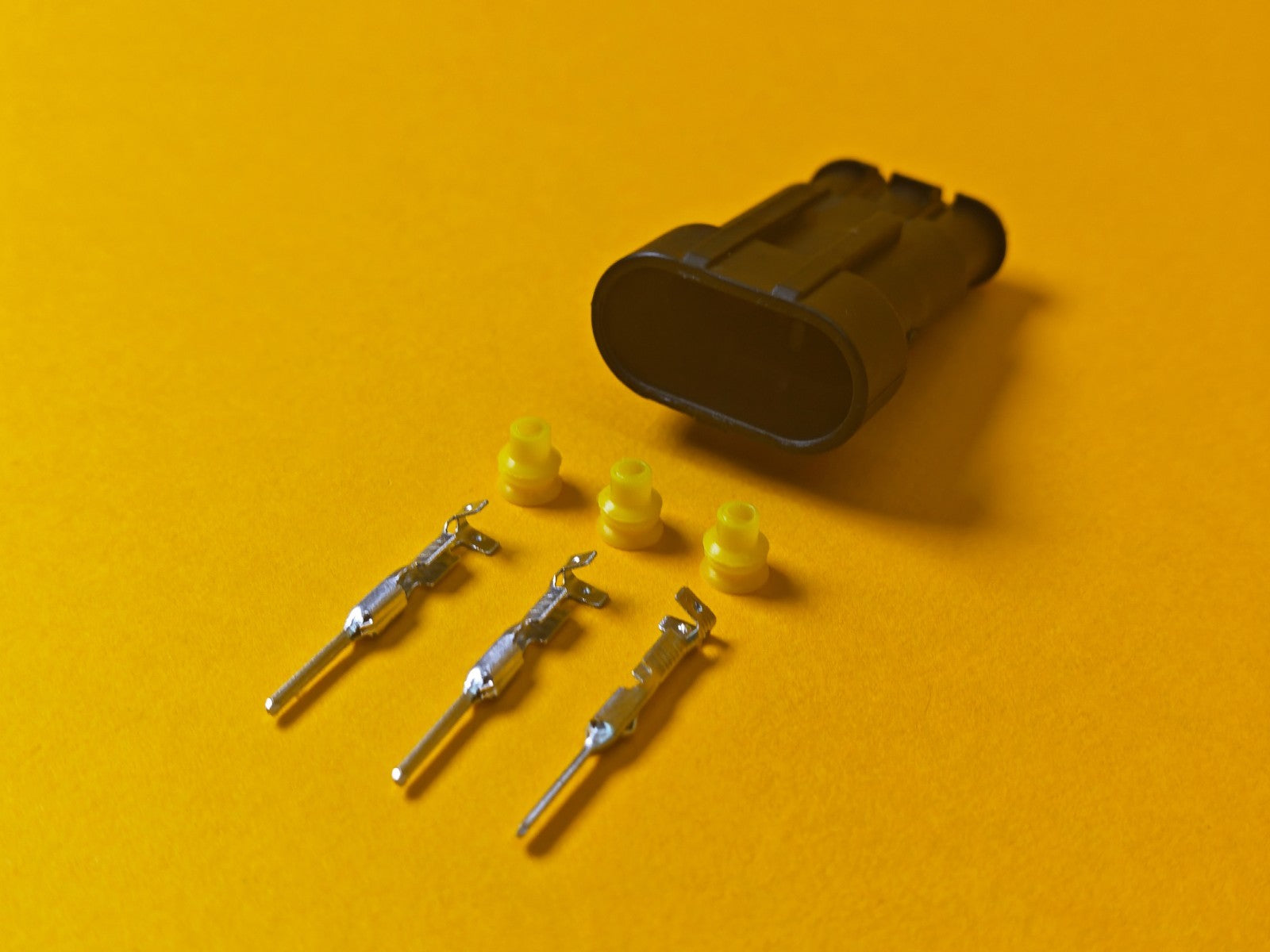

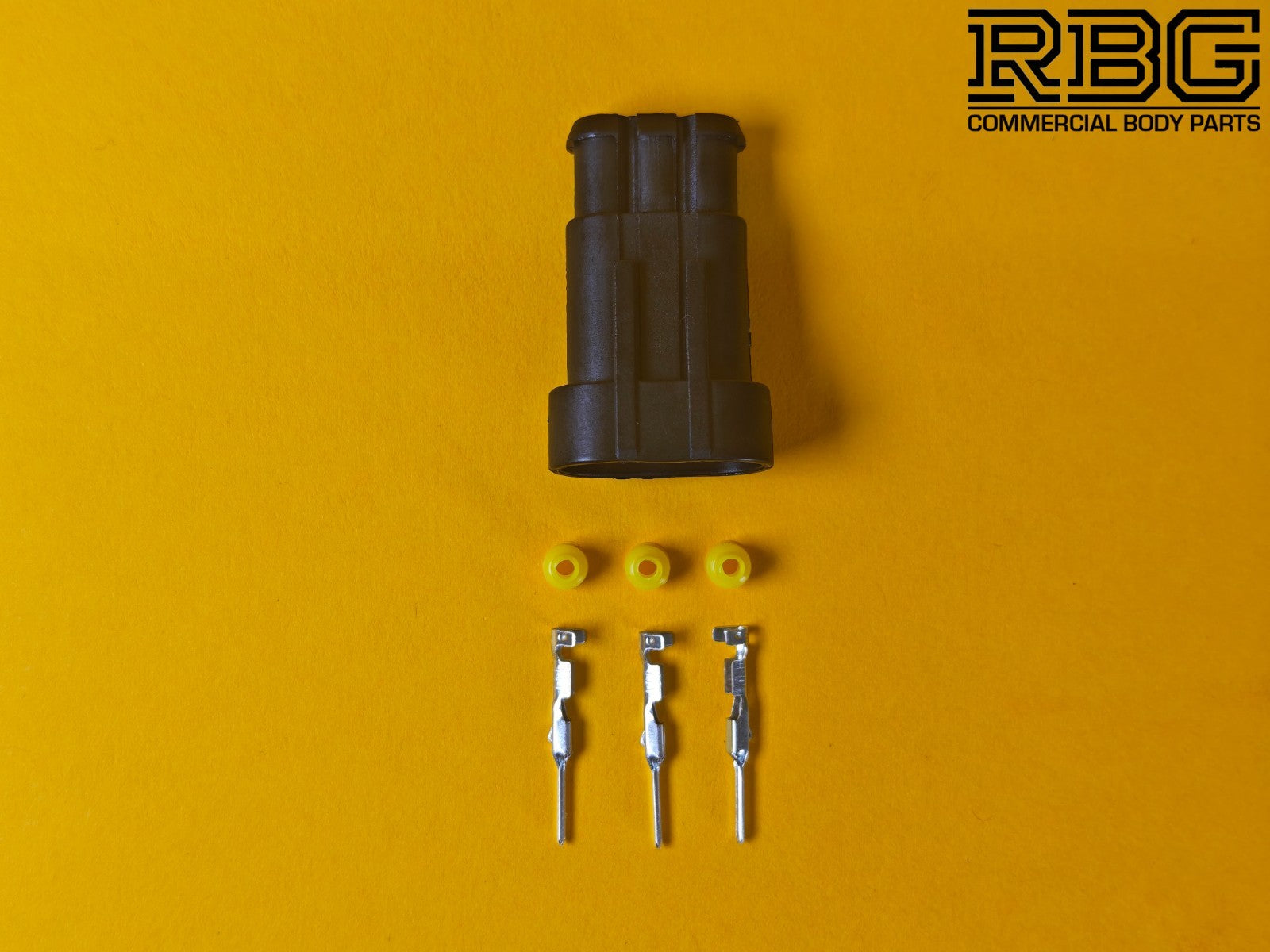

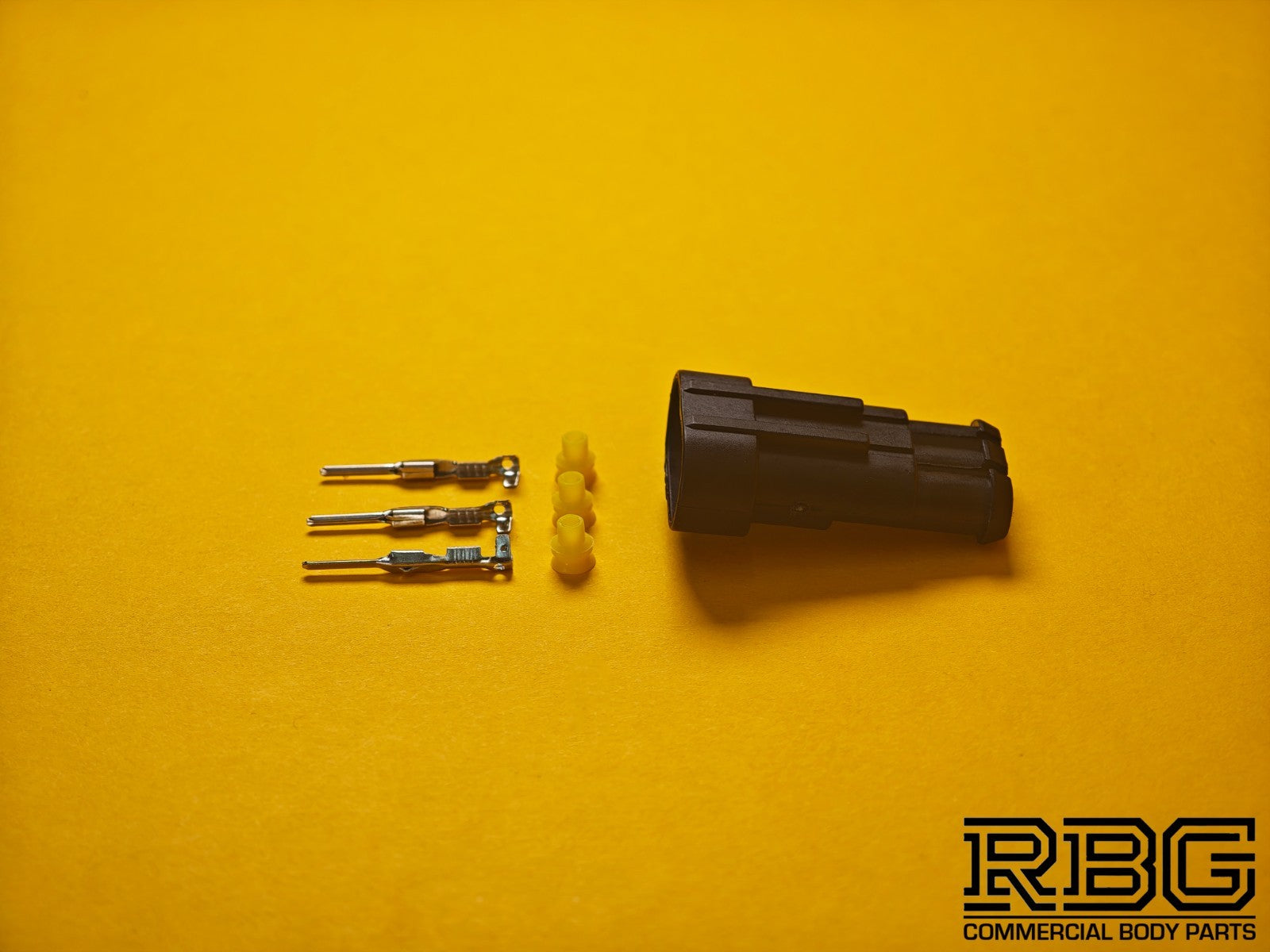

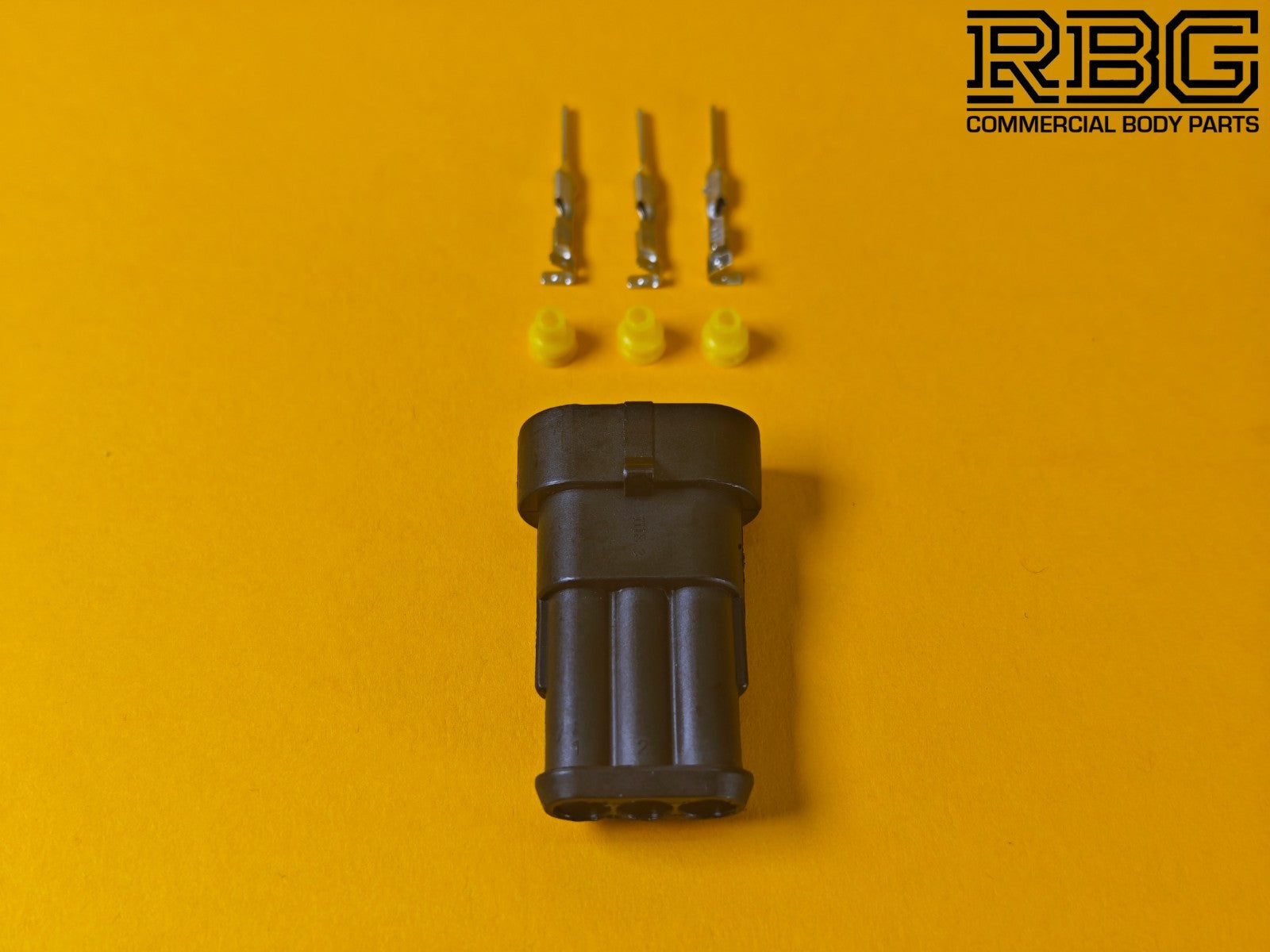

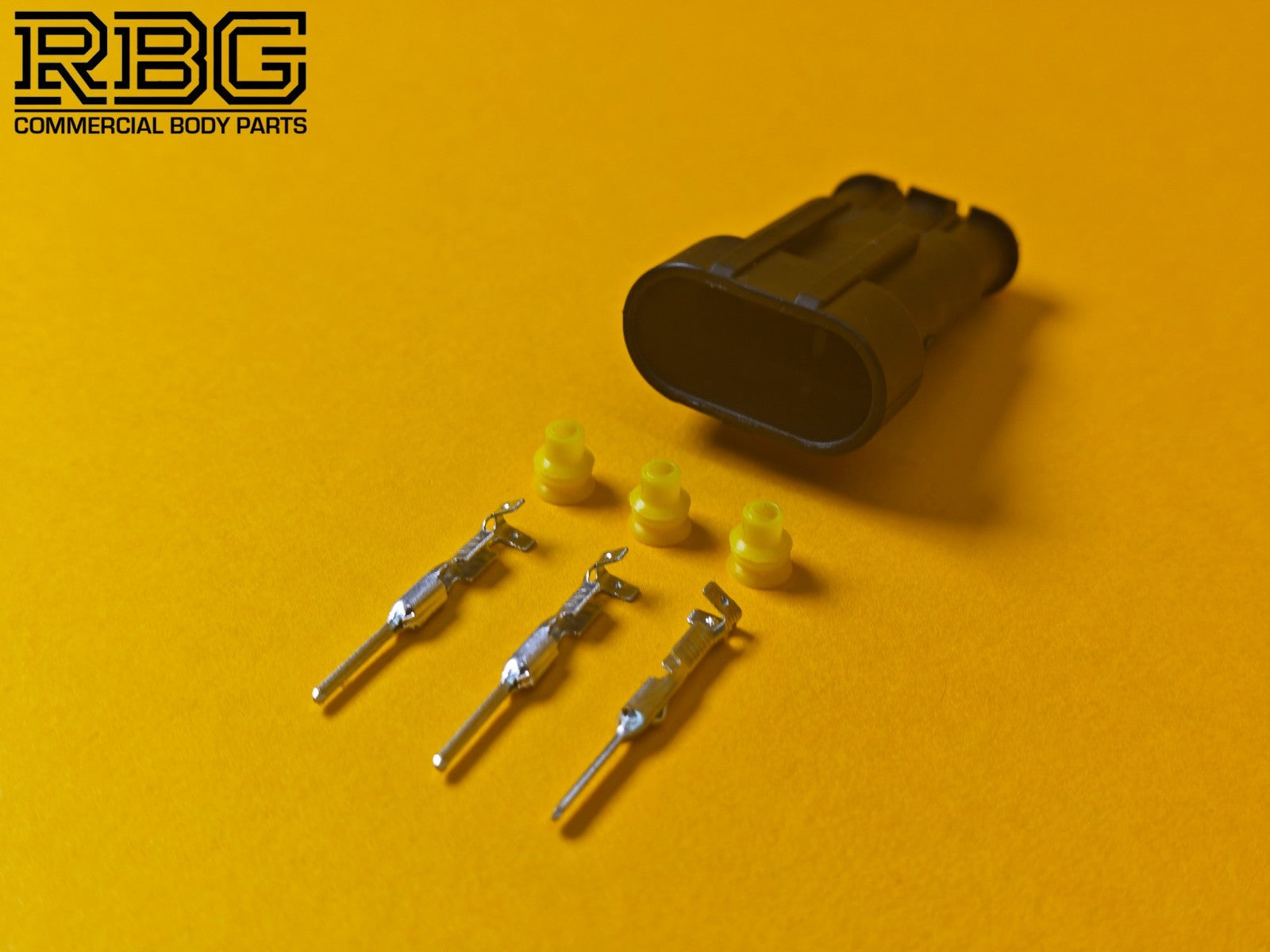

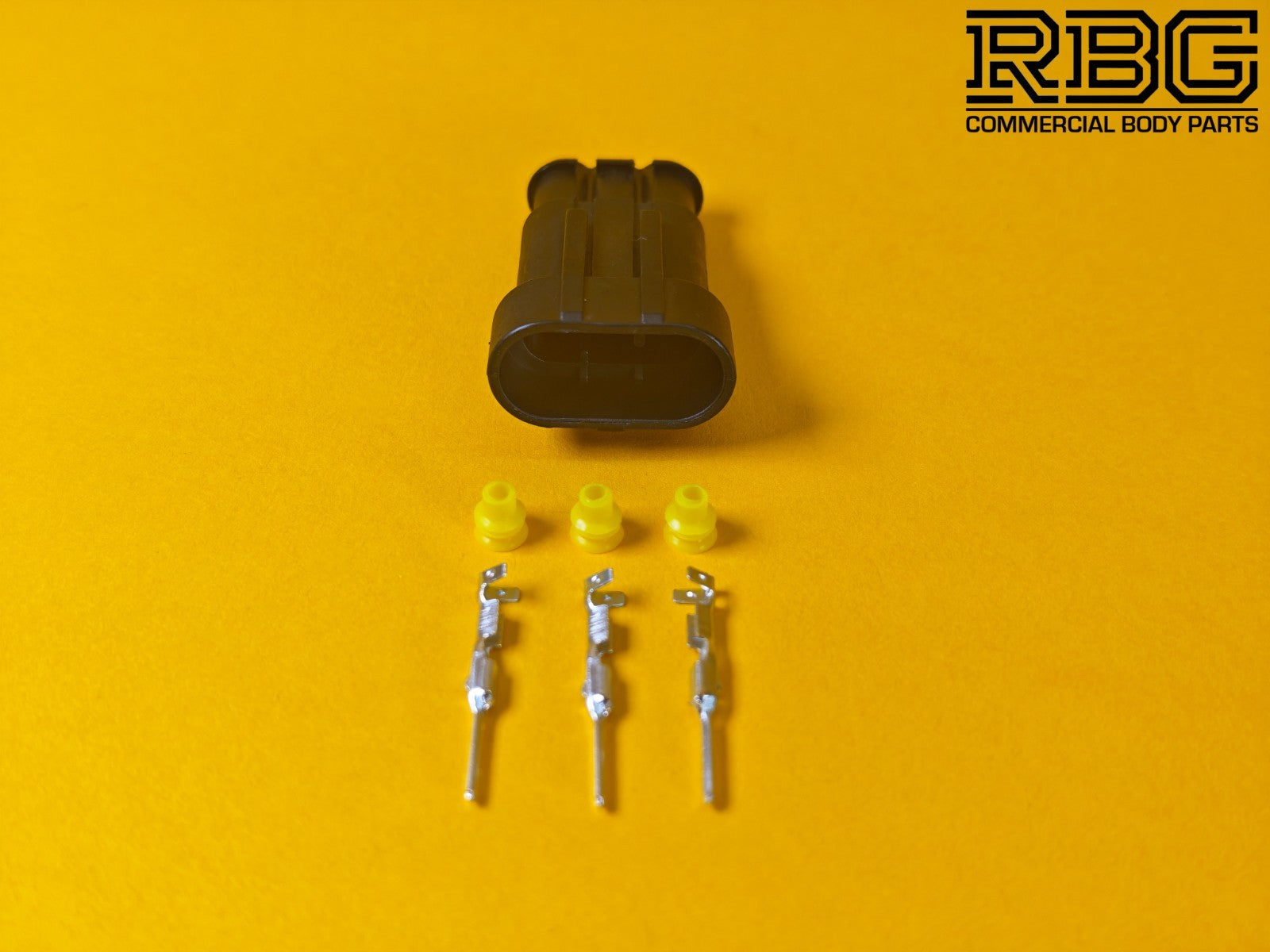

- 1 × 3-Way Female Housing

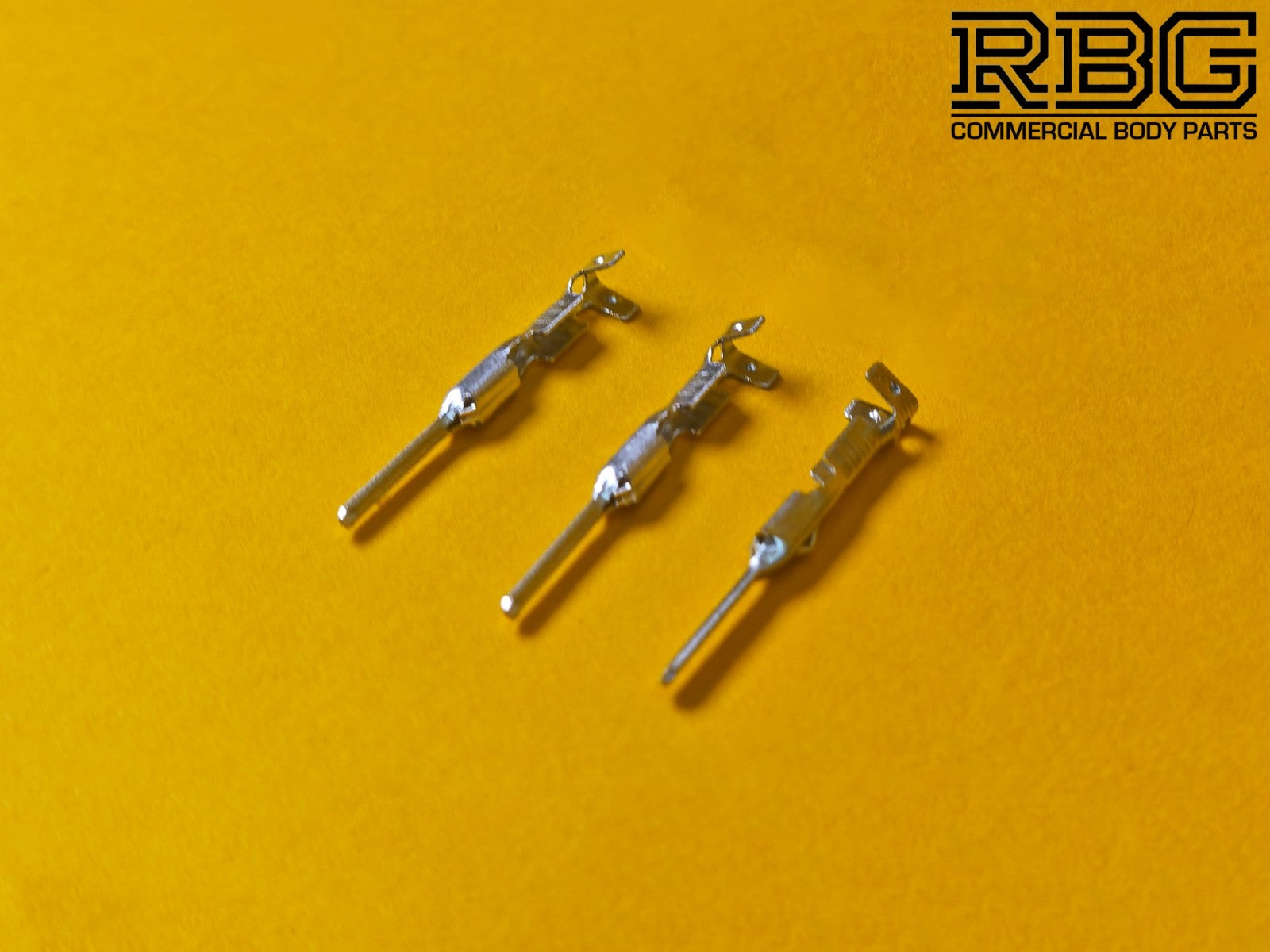

- 3 × Male Terminal Pins

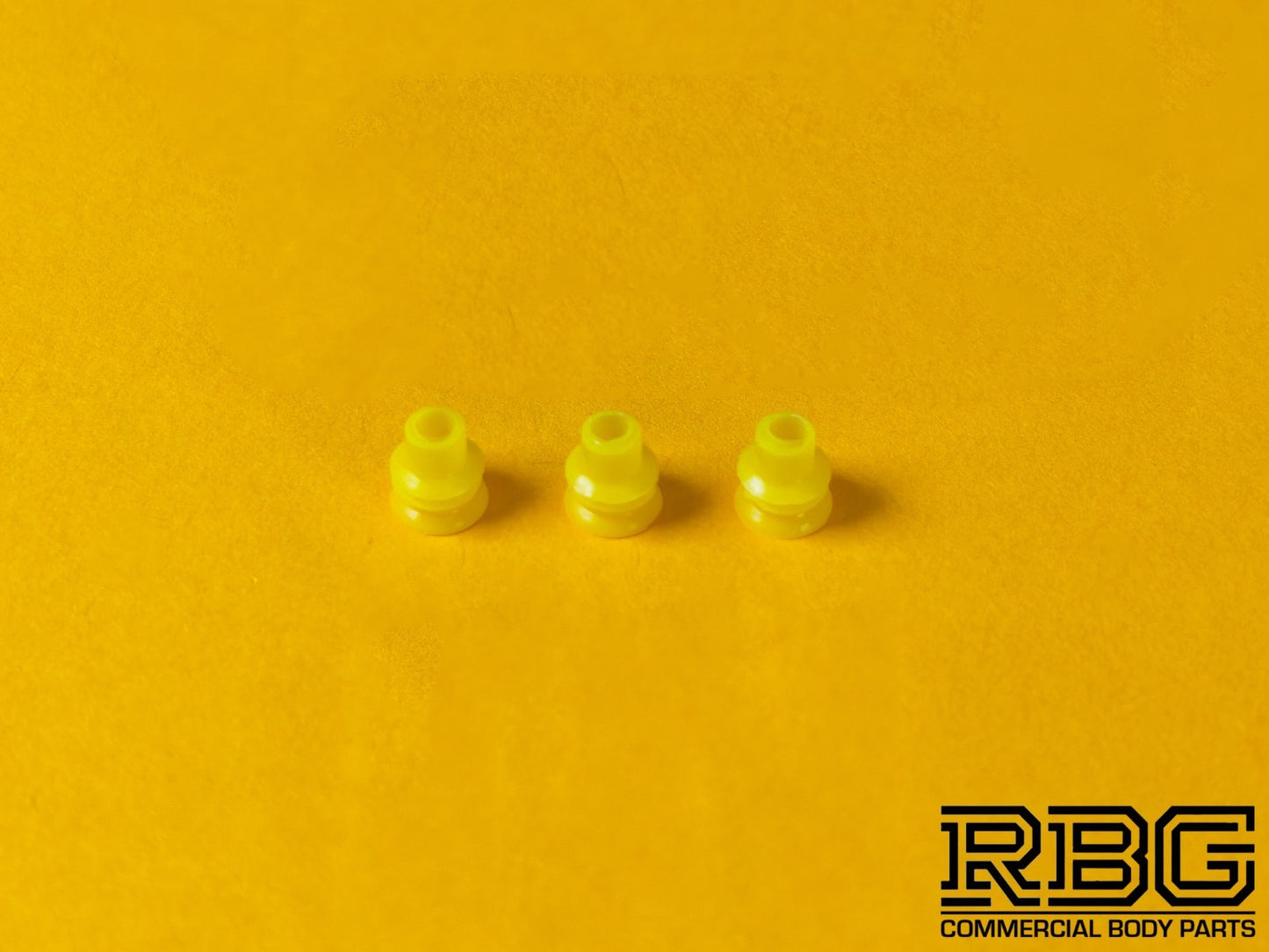

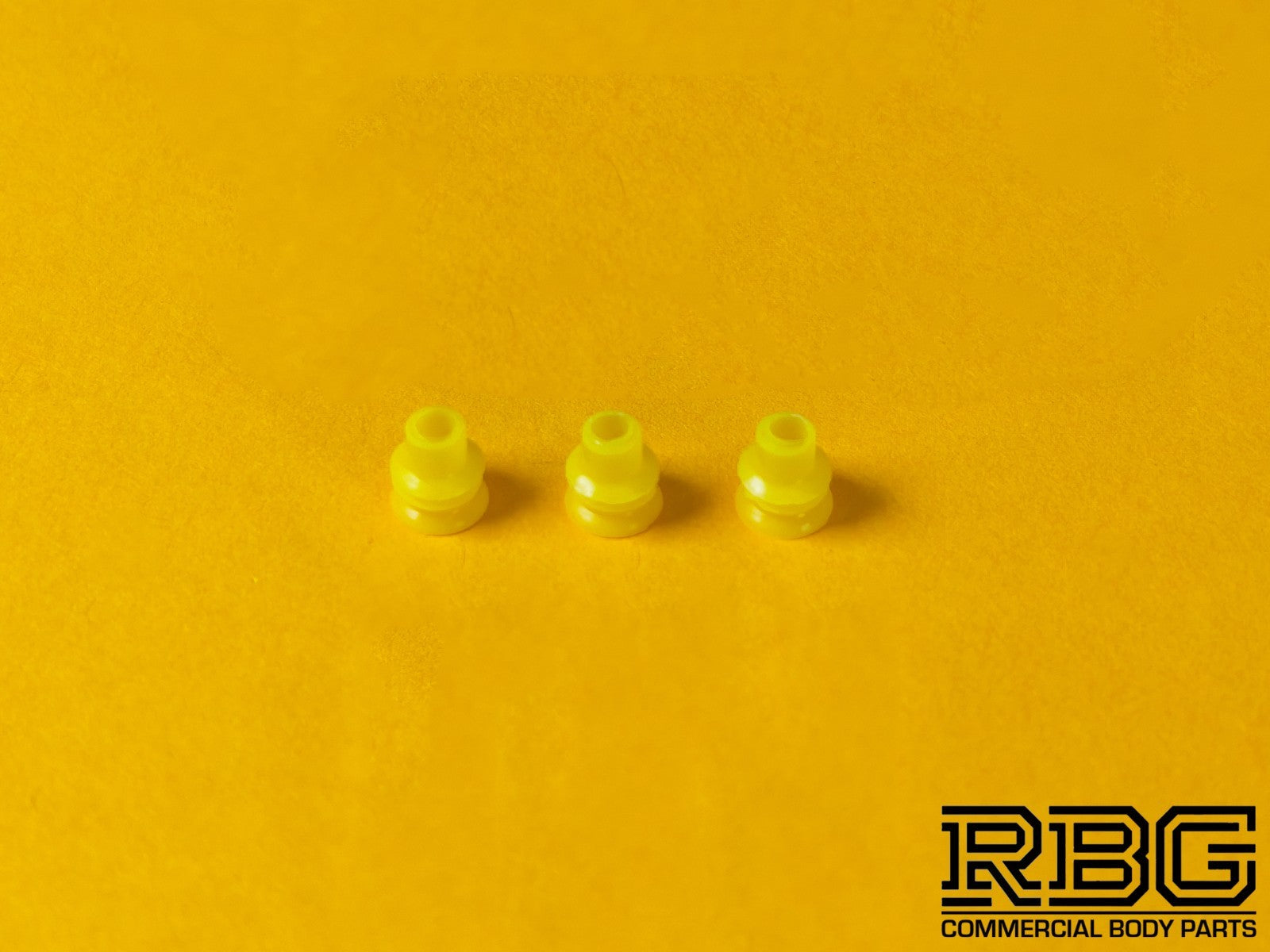

- 3 × Silicone Wire Seals (yellow)
- High-integrity sealed connector architecture for harsh environments
- Excellent resistance to vibration, oil, moisture, and thermal cycling
- Reliable crimp-and-lock retention system ensures consistent continuity
- Compact form factor suitable for tight harness installations
- Widely used in professional OEM and aftermarket wiring applications
