2-Way Male SuperSeal Connector Kit with Protective Boot — Sealed Automotive Electrical Termination Assembly

This 2-Way Male SuperSeal Connector Kit with Protective Boot is a fully integrated sealing and strain-relief solution engineered for high-integrity electrical terminations in automotive, commercial vehicle, agricultural, and marine wiring environments. Based on the TE/AMP SuperSeal architecture, the assembly ensures optimal contact stability, moisture exclusion, and mechanical durability under sustained exposure to vibration, thermal cycling, and contaminant ingress.

The male connector housing incorporates dual-channel terminal guides and a precision-moulded secondary lock, guaranteeing consistent terminal retention and alignment during operation. Supplied tin-plated copper alloy terminals ensure efficient current transmission with minimal resistive loss. The included dual yellow silicone seals provide radial compression around the conductors, establishing an IP-rated environmental barrier when correctly assembled.

To enhance rear-entry protection, the kit includes a heavy-duty elastomeric boot designed to shield the connector body and conductor entry zone from road spray, mud, oils, and other harsh contaminants. Its ribbed strain-relief section mitigates cable fatigue under bending loads, while the tapered internal geometry ensures a tight interference fit over the connector housing.

Specification

Connector System:
• AMP/TE-pattern 2-Way SuperSeal — Male
• Integrated secondary terminal lock for positive retention
• Precision-moulded front interface for accurate female-side mating

Materials:
• Housing: Thermoplastic
• Boot: Silicone
• Terminals: Tinned Brass
• Cable Seals: Yellow silicone

Mechanical & Environmental Performance:
• Supports IP67-equivalent sealing when fully assembled
• Vibration-resistant locking design prevents terminal micro-movement
• Suitable for 0.5–1.5 mm² (16–20 AWG) conductors
• Resistant to fuels, oils, hydraulic fluids, UV, and road contaminants
• Extended cable life through integrated strain-relief boot design

Electrical Characteristics:
• High-conductivity terminals for low-loss current flow
• Approximate current capacity: 14 A (application-dependent)

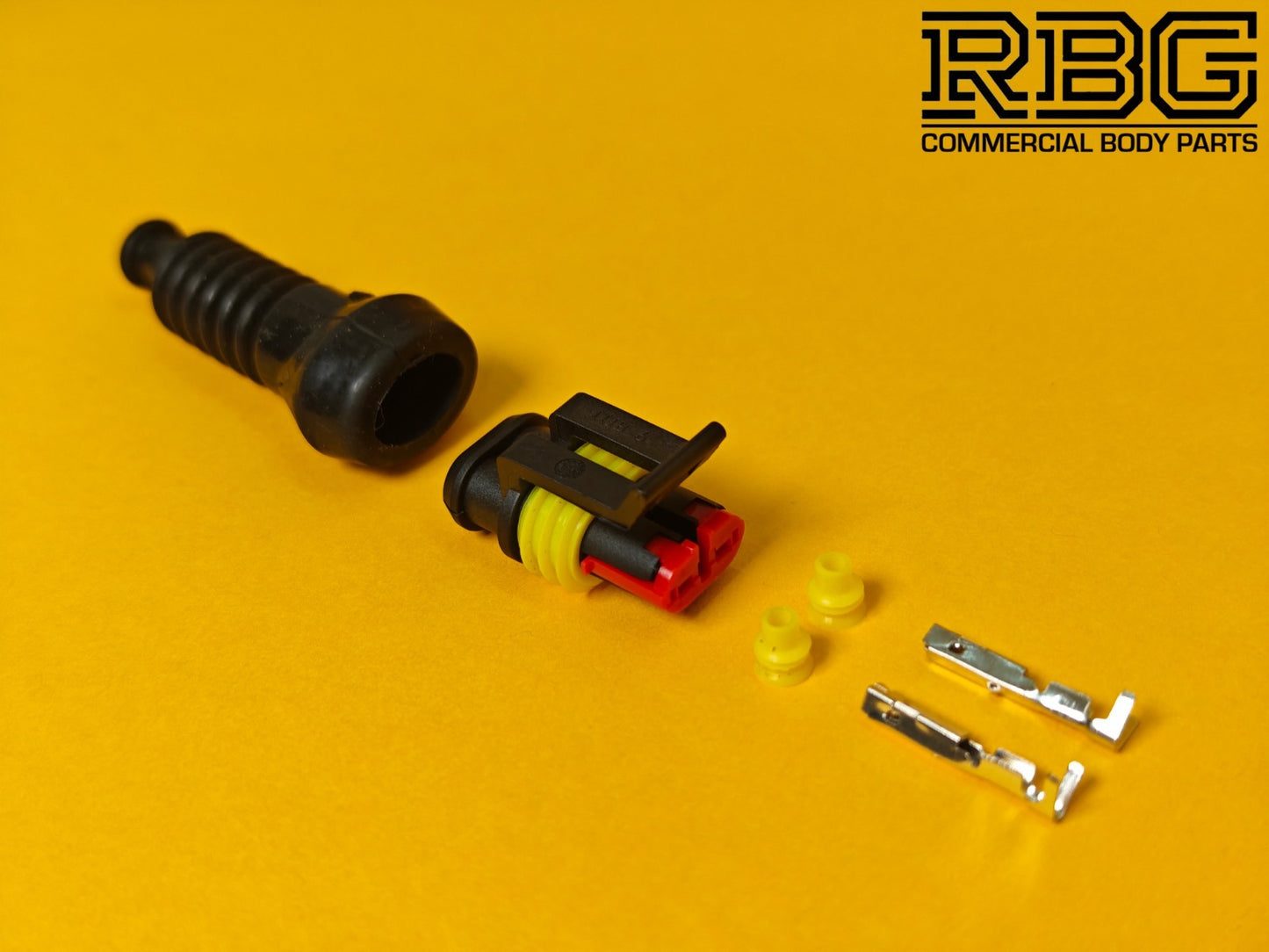

Package Contains:
• 1 × 2-Way Male SuperSeal Housing
• 1 × Protective Rear Boot
• 2 × Male Crimp Terminals
• 2 × Yellow Cable Seals

Applications:
• Automotive harness manufacture and repair
• HGV and fleet vehicle electrics
• Agricultural & construction equipment wiring
• Marine electrical systems
• Sensors, lighting circuits, auxiliary components
