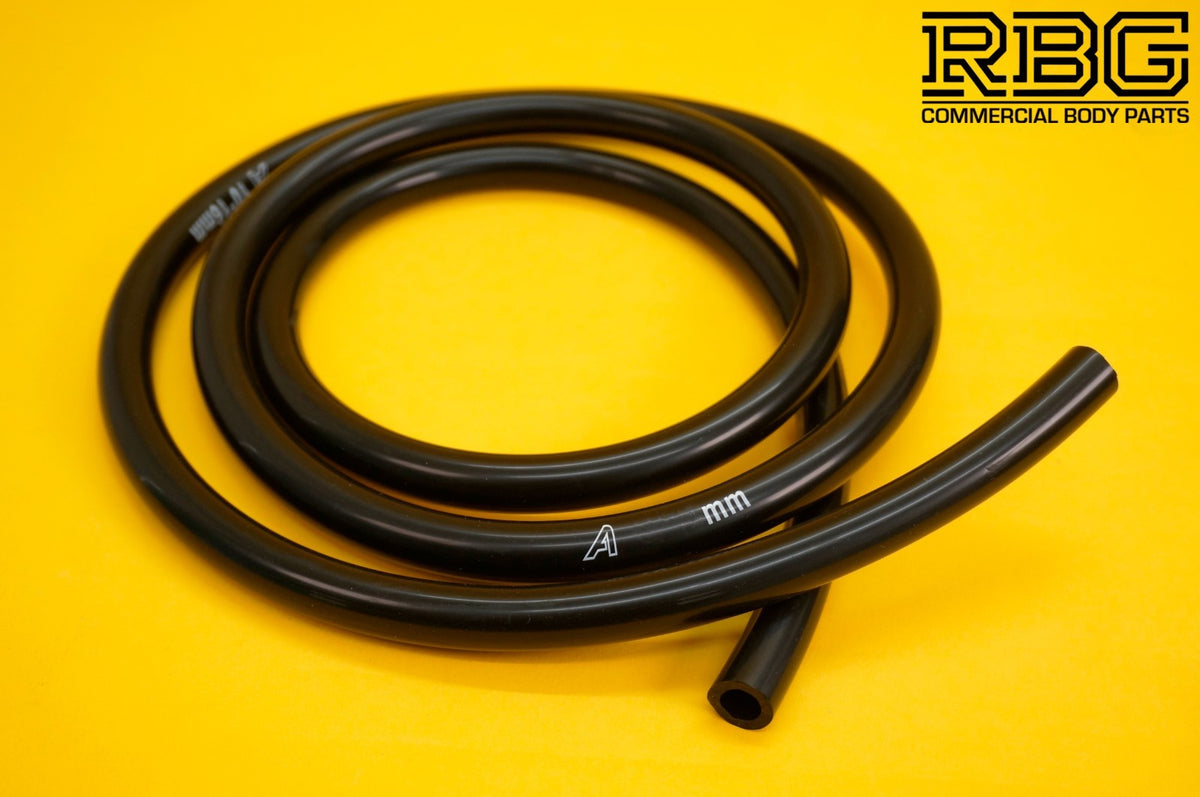

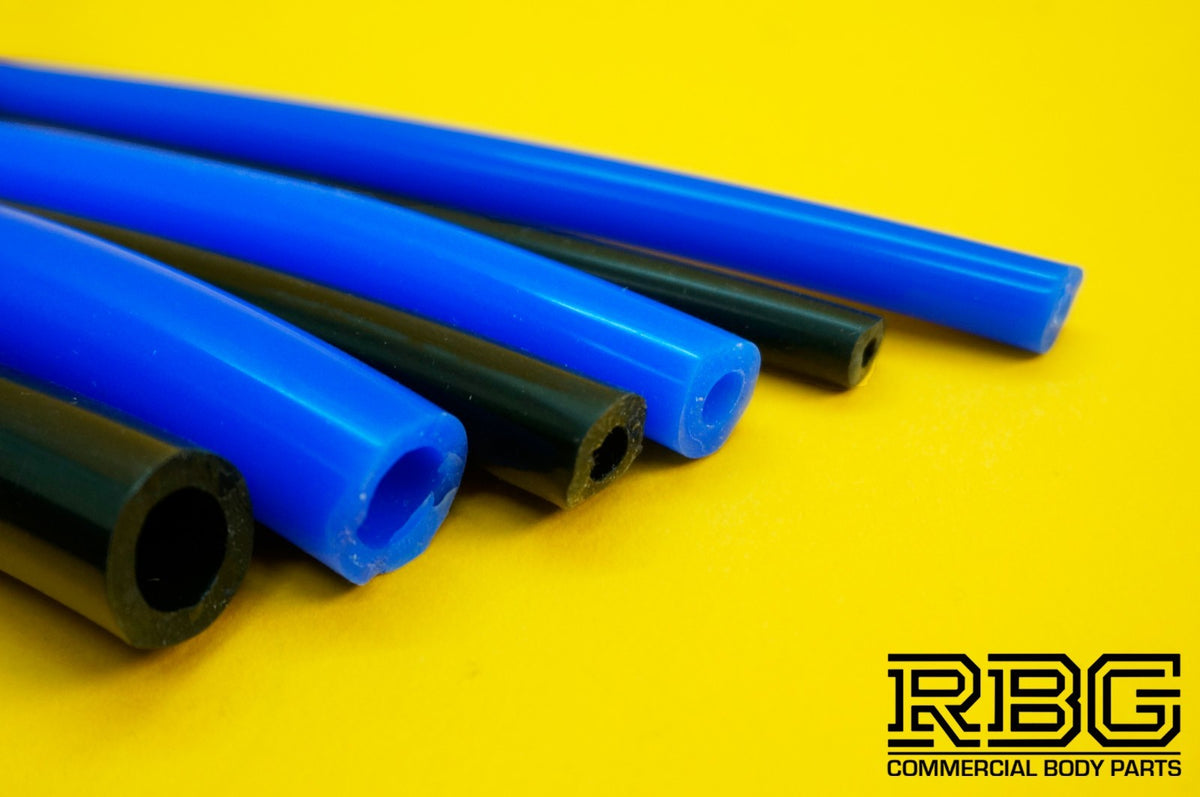

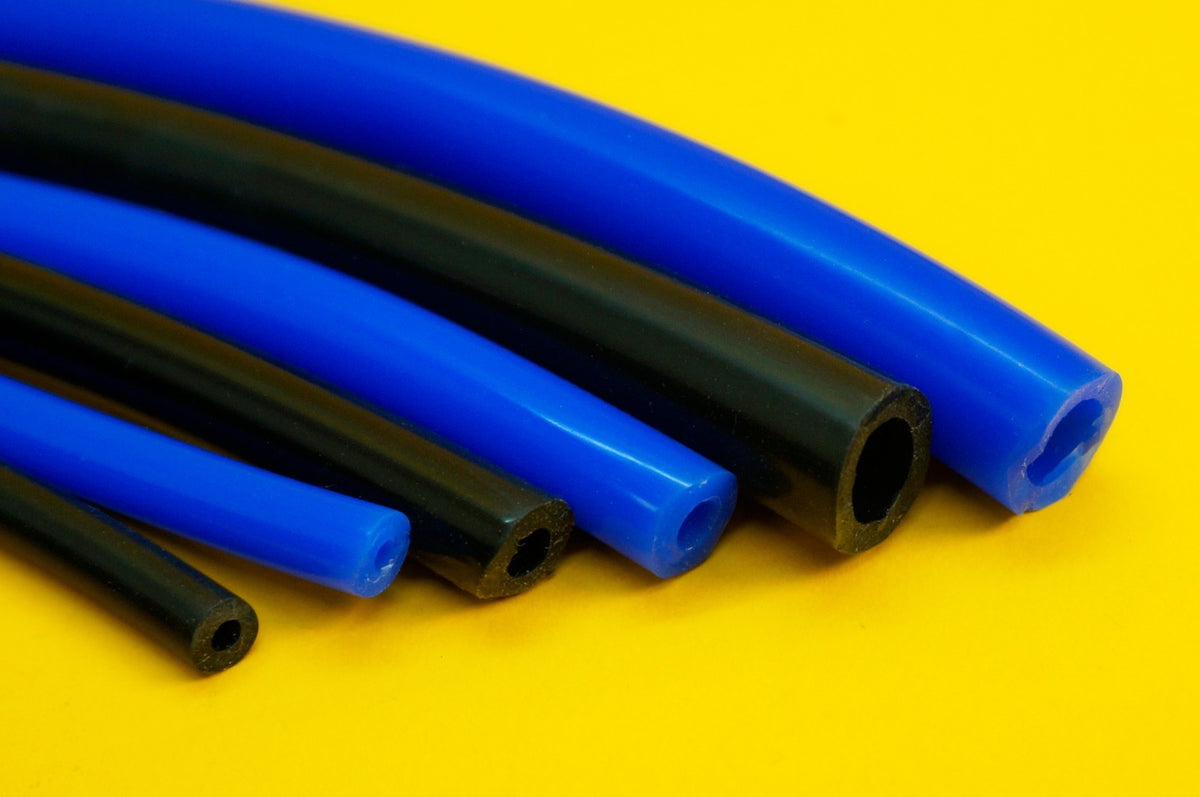

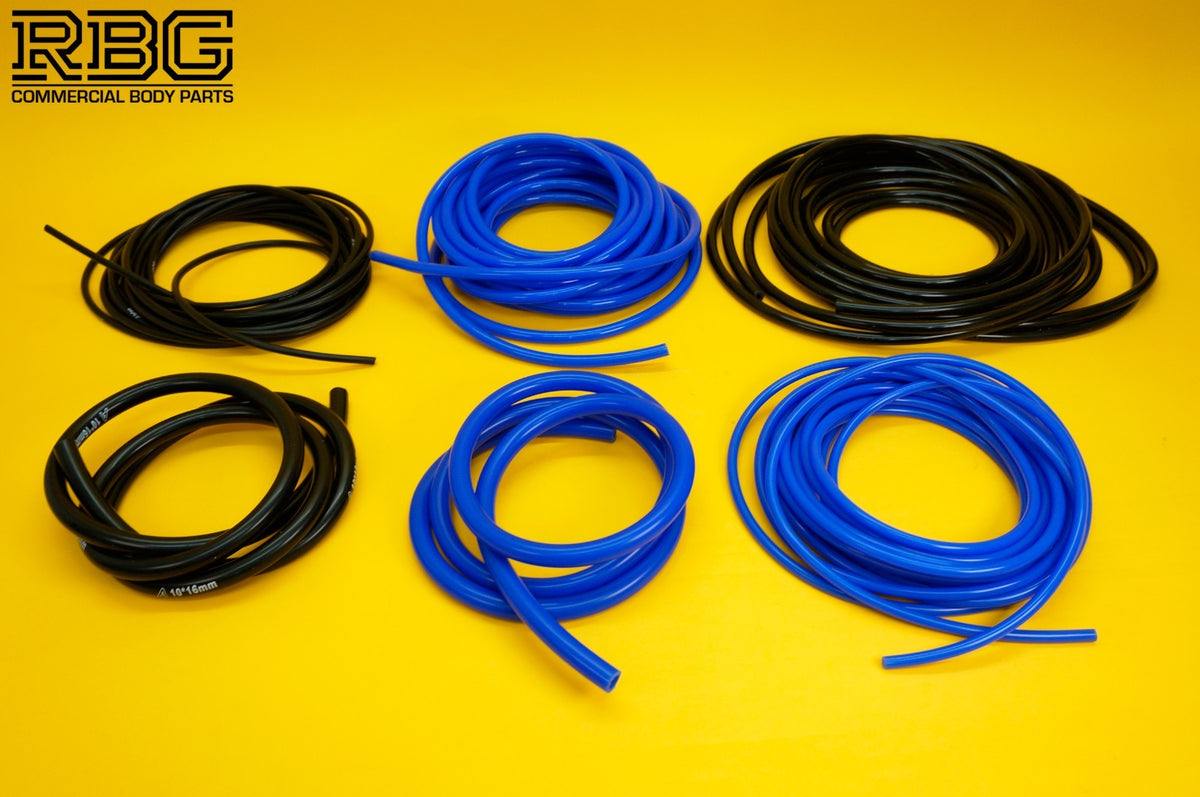

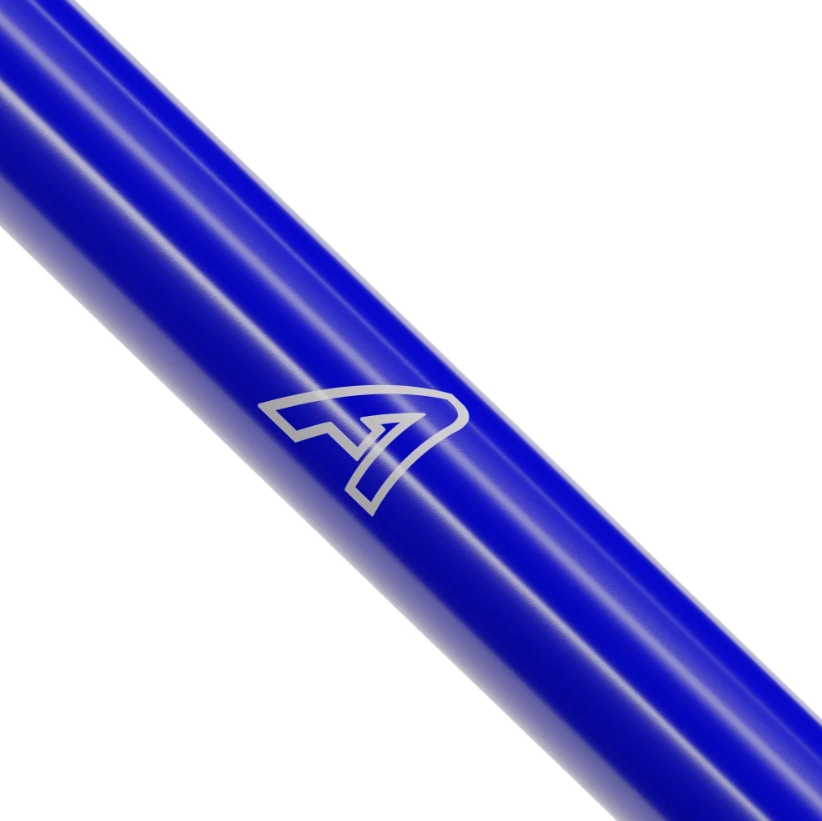

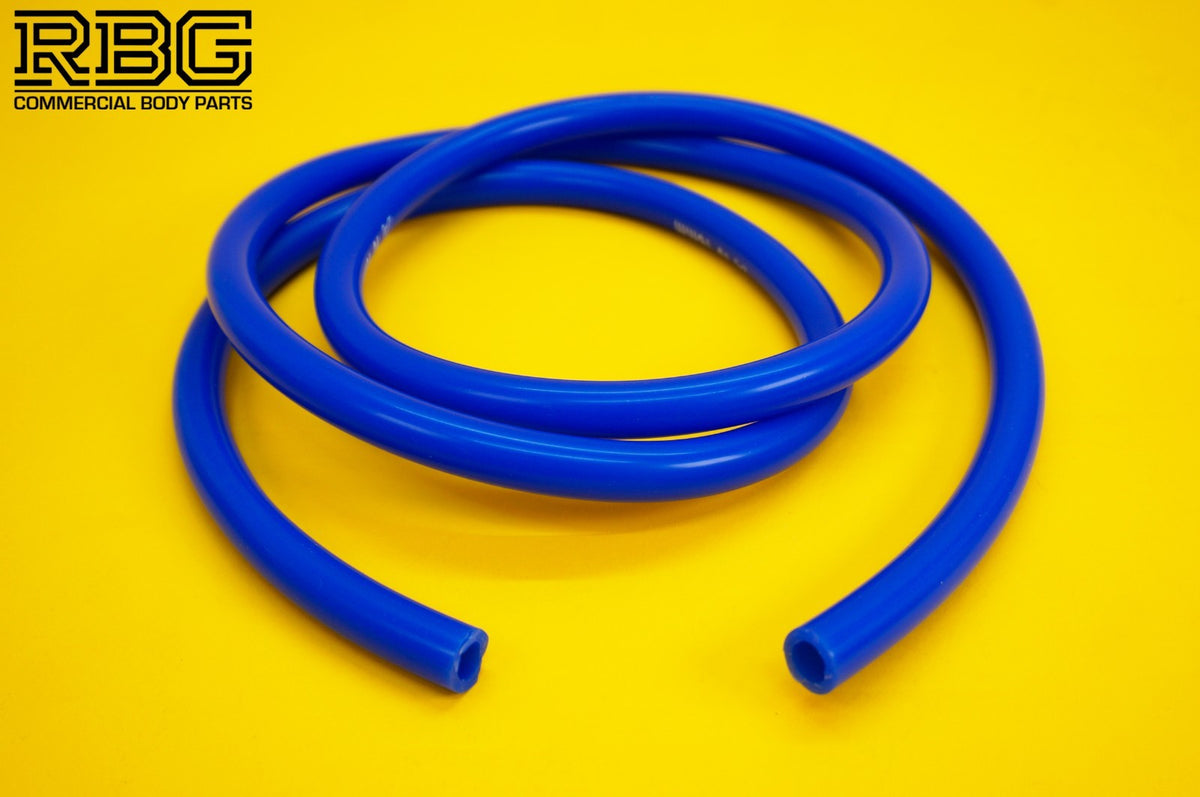

Silicone Vacuum Hose Pipes - VARIOUS SIZES

This AutoSiliconeHoses Silicone Vacuum Hose Pipe is a flexible, heat-resistant hose designed for a wide range of automotive vacuum, air, dump valve, turbo and boost control applications. Available in 3mm, 5mm and 10mm internal diameters with Black and Blue colour options, it provides a practical replacement or upgrade for compatible engine bay and general automotive hose installations.

Manufactured from durable silicone, the hose offers excellent flexibility for routing around engine components and through confined spaces. Wall thickness varies according to the selected diameter, with the 3mm ID hose featuring a 2mm wall, while the 5mm and 10mm ID hoses feature a 3mm wall thickness.

The hose is intended for atmospheric vacuum applications and is not pressure rated. This makes it suitable for compatible vacuum lines, control hoses and other applications operating within the stated specification. It should not be selected as a substitute for reinforced pressure hose in applications requiring a specified positive working-pressure rating.

Manufactured to SAE J20R3, the silicone hose has a continuous operating temperature range of -60°C to +180°C, with short peak temperatures up to +200°C. This broad temperature capability makes it particularly useful for compatible under-bonnet applications where conventional hose may be exposed to repeated heating and cooling cycles.

Key Features

• Genuine AutoSiliconeHoses silicone vacuum hose
• Available in 3mm, 5mm and 10mm internal diameters
• Available in Black or Blue
• Flexible silicone construction
• Suitable for atmospheric vacuum applications
• Ideal for compatible automotive vacuum lines
• Suitable for turbo and boost control lines
• Suitable for dump valve vacuum connections
• Useful for compatible air and water applications
• 3mm ID: 2mm wall thickness
• 5mm ID: 3mm wall thickness
• 10mm ID: 3mm wall thickness
• Continuous temperature range of -60°C to +180°C
• Short peak temperature capability up to +200°C
• Manufactured to SAE J20R3
• Suitable for automotive, motorsport and general engineering applications
• Multiple sizes and colours available
• Not pressure rated

Specifications

• Brand: AutoSiliconeHoses
• Product Type: Silicone Vacuum Hose / Pipe
• Material: Silicone
• Available Internal Diameters: 3mm / 5mm / 10mm
• 3mm Hose Wall Thickness: 2mm
• 5mm Hose Wall Thickness: 3mm
• 10mm Hose Wall Thickness: 3mm
• Available Colours: Black / Blue
• Working Pressure: Atmospheric Vacuum – Not Pressure Rated
• Temperature Rating: -60°C to +180°C
• Peak Temperature: +200°C
• Standard: SAE J20R3
• Fitment: Universal – check dimensions and application before ordering

Suitable Applications

• Automotive vacuum lines
• Engine vacuum hoses
• Turbo control lines
• Boost control systems
• Dump valve vacuum lines
• Blow-off valve control lines
• Wastegate control connections
• Compatible air lines
• Compatible water lines
• Engine bay hose replacement
• Cars
• Vans
• Commercial vehicles
• Motorsport vehicles
• Performance vehicles
• Modified vehicles
• Engine conversions
• Restoration projects
• Workshop repairs
• General automotive and engineering applications

Important: This silicone hose is designed for atmospheric vacuum applications and is not pressure rated. For pressurised boost, coolant or other positive-pressure systems, use a suitably reinforced and pressure-rated hose appropriate to the application.

Supplied as AutoSiliconeHoses Universal Silicone Vacuum Hose Pipe in your selected 3mm, 5mm or 10mm internal diameter and Black or Blue colour, suitable for compatible vacuum, air, water, dump valve, turbo and boost control applications. Please select the correct internal diameter for your fittings and confirm that a non-pressure-rated vacuum hose is suitable for your intended application before ordering.

Securely packaged and dispatched same working day if purchased by 1 p.m.
