Silicone Hose 90 Degree Elbow Pipes - 3 SIZES

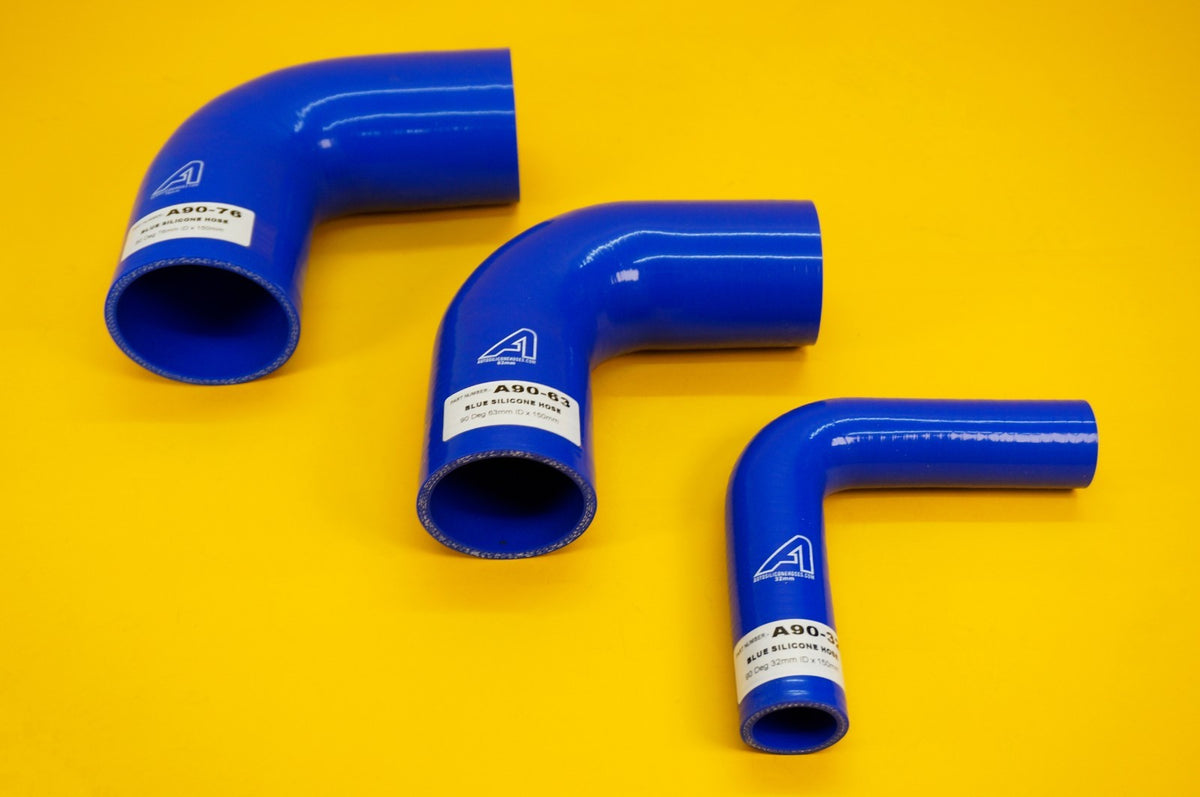

These AutoSiliconeHoses 90 Degree Silicone Elbow Hoses provide durable, flexible and heat-resistant connections for automotive, industrial, commercial and general engineering applications. Available in three internal diameter sizes – 32mm, 63mm and 76mm, these reinforced blue silicone bends are suitable for routing compatible air, water and coolant lines where a compact 90-degree connection is required.

Manufactured from a smooth extruded silicone compound with integrated polyester braid reinforcement, these hoses combine flexibility with dimensional stability. The 32mm hose features 3-ply reinforcement and a 4.5mm wall thickness, while the 63mm and 76mm hoses feature 4-ply reinforcement and a 5.5mm wall thickness. This reinforced construction helps control expansion, resist kinking and maintain the hose shape during operation.

Each silicone elbow features a 90-degree bend with 150mm (6") leg lengths, allowing pipework to be routed around engine components, machinery and other obstacles. The smooth internal bore supports efficient airflow and fluid transfer, while the polyester reinforcement provides strength for compatible pressurised applications.

Manufactured to SAE J20 R3, these blue silicone elbow hoses offer resistance to ageing and ozone exposure. The stated temperature range is -50°C to +250°C, with +250°C specified as the peak temperature. Working pressure varies by size, ranging from 3.5 bar to 5.17 bar, with corresponding bursting pressures from 10.5 bar to 15.5 bar and a stated 3:1 safety factor.

Key Features

• Brand: AutoSiliconeHoses
• High-quality 90 Degree Silicone Elbow Hose
• Available in 3 sizes: 32mm, 63mm and 76mm internal diameter
• Durable blue silicone construction
• Smooth extruded silicone inner layer
• Reinforced with polyester fabric braiding
• 3-ply or 4-ply construction, depending on size
• 150mm (6") leg length on each side
• 4.5mm or 5.5mm wall thickness, depending on size
• Consistent 90-degree elbow design
• Smooth internal bore for efficient airflow and fluid transfer
• Flexible construction for straightforward installation
• Reinforced design helps resist kinking and deformation
• Size-specific working pressures from 3.5 bar to 5.17 bar
• Size-specific bursting pressures from 10.5 bar to 15.5 bar
• 3:1 safety factor
• Resistant to ageing and ozone exposure
• Suitable for compatible air, water and coolant applications
• Suitable for automotive cooling and hose routing systems
• Temperature range from -50°C to +250°C
• Peak temperature: +250°C
• Manufactured to SAE J20 R3
• PVC-free silicone construction
• Universal fitment according to dimensions

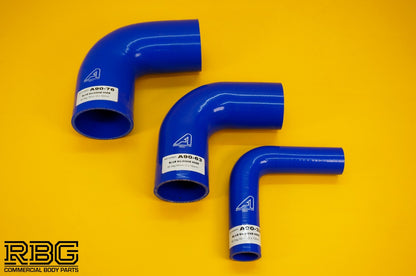

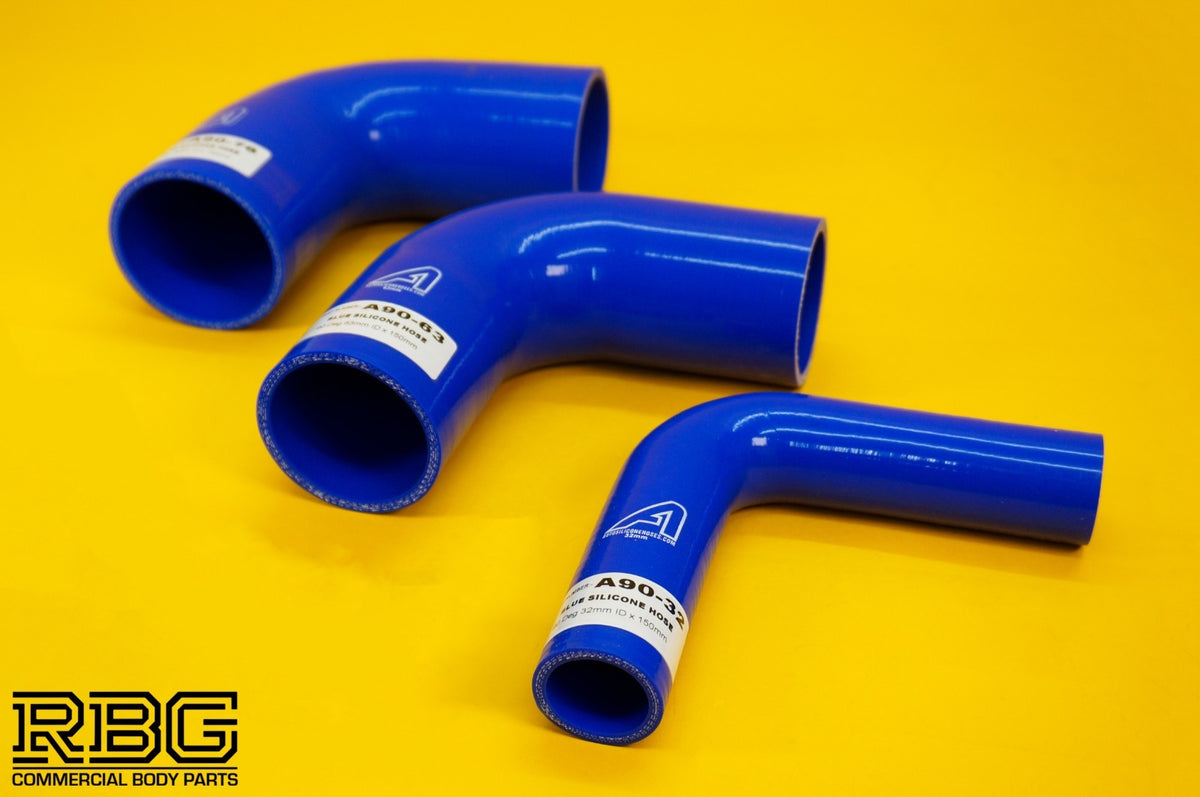

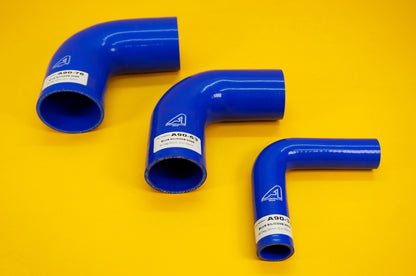

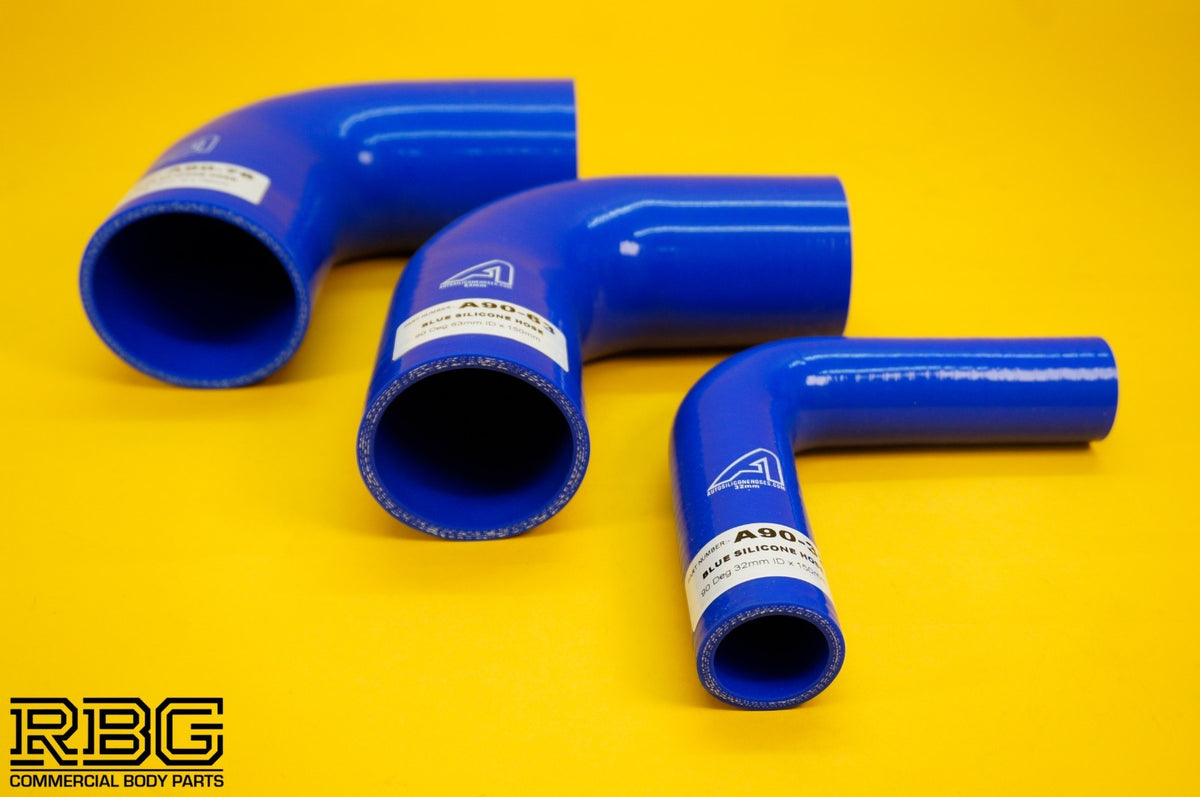

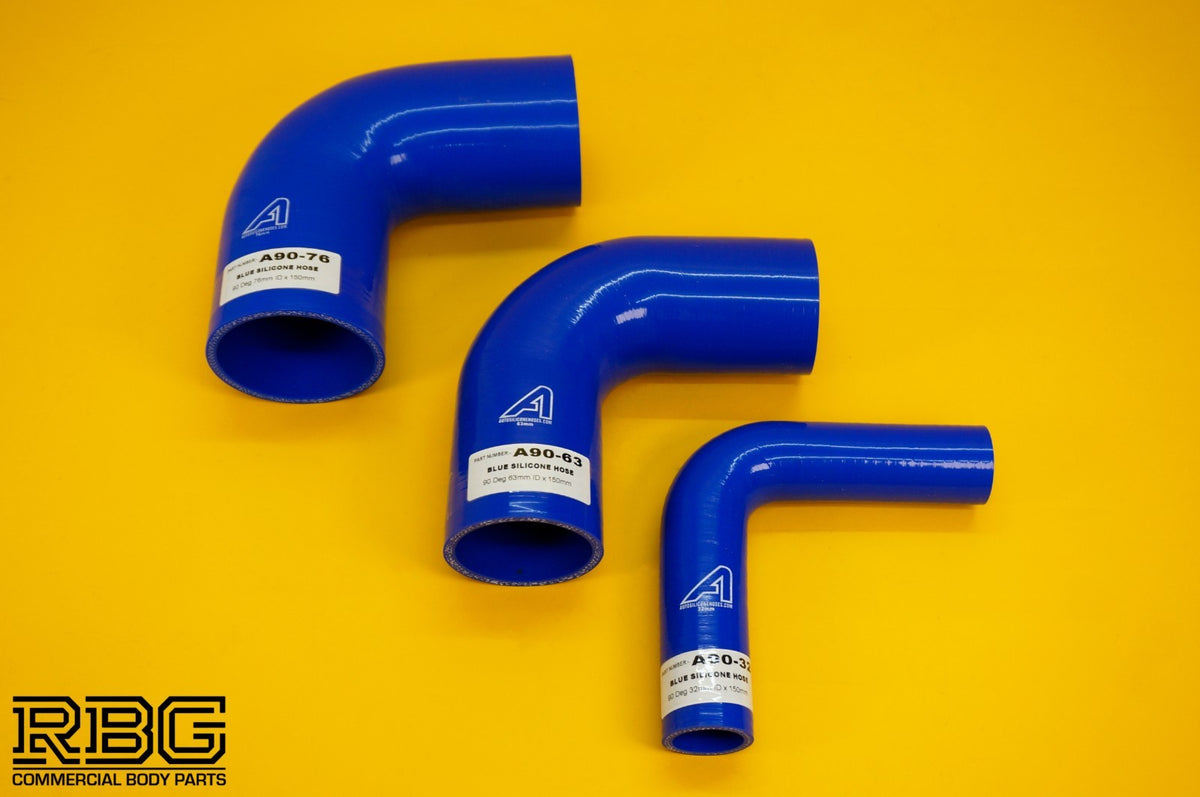

Available Sizes & Technical Specifications

Specification	32mm Hose	63mm Hose	76mm Hose
Inside Diameter	32mm	63mm	76mm
Outside Diameter	41mm	74mm	87mm
Wall Thickness	4.5mm	5.5mm	5.5mm
Working Pressure	5.17 bar	4 bar	3.5 bar
Bursting Pressure	15.5 bar	12 bar	10.5 bar
Bending Radius	32mm	63mm	65mm
Number of Plies	3	4	4
Each Leg Length	150mm	150mm	150mm

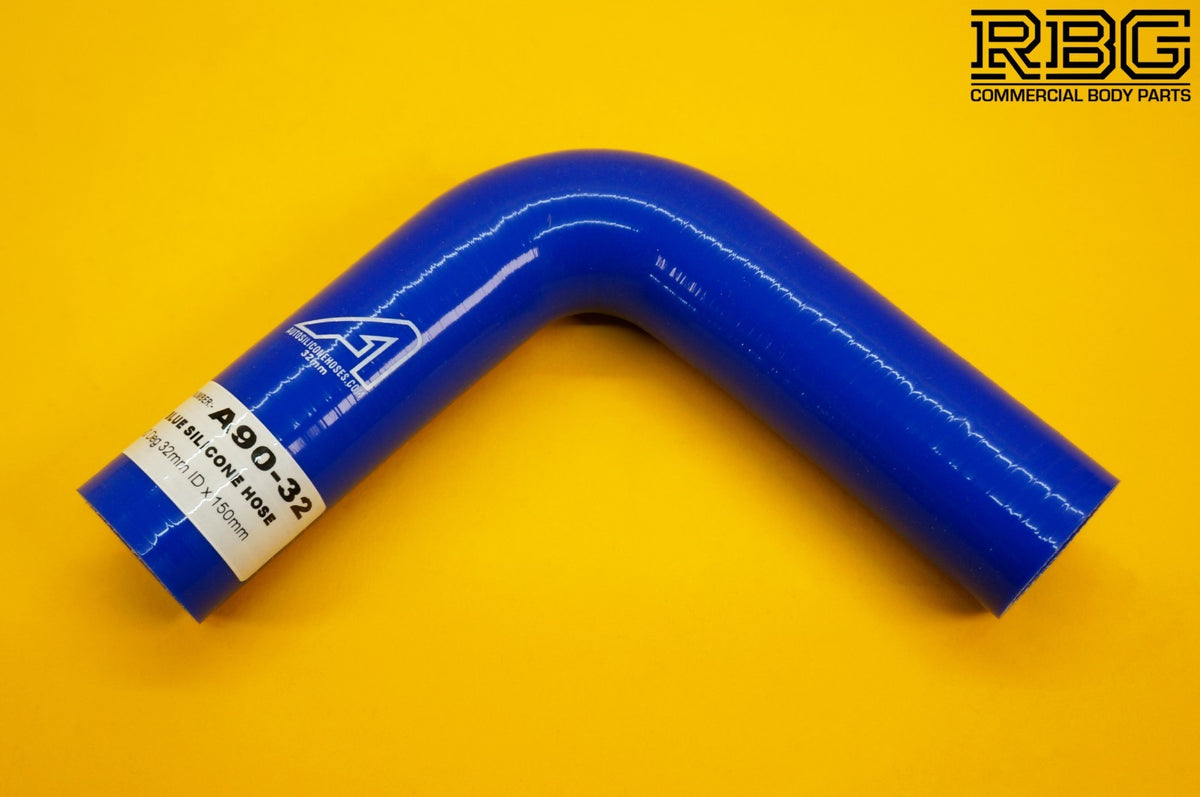

32mm Internal Diameter Silicone Elbow

The 32mm 90 Degree Silicone Elbow Hose features a 41mm outside diameter, 4.5mm wall thickness and 3-ply polyester reinforcement. It has a working pressure rating of 5.17 bar, a bursting pressure of 15.5 bar and a specified bending radius of 32mm.

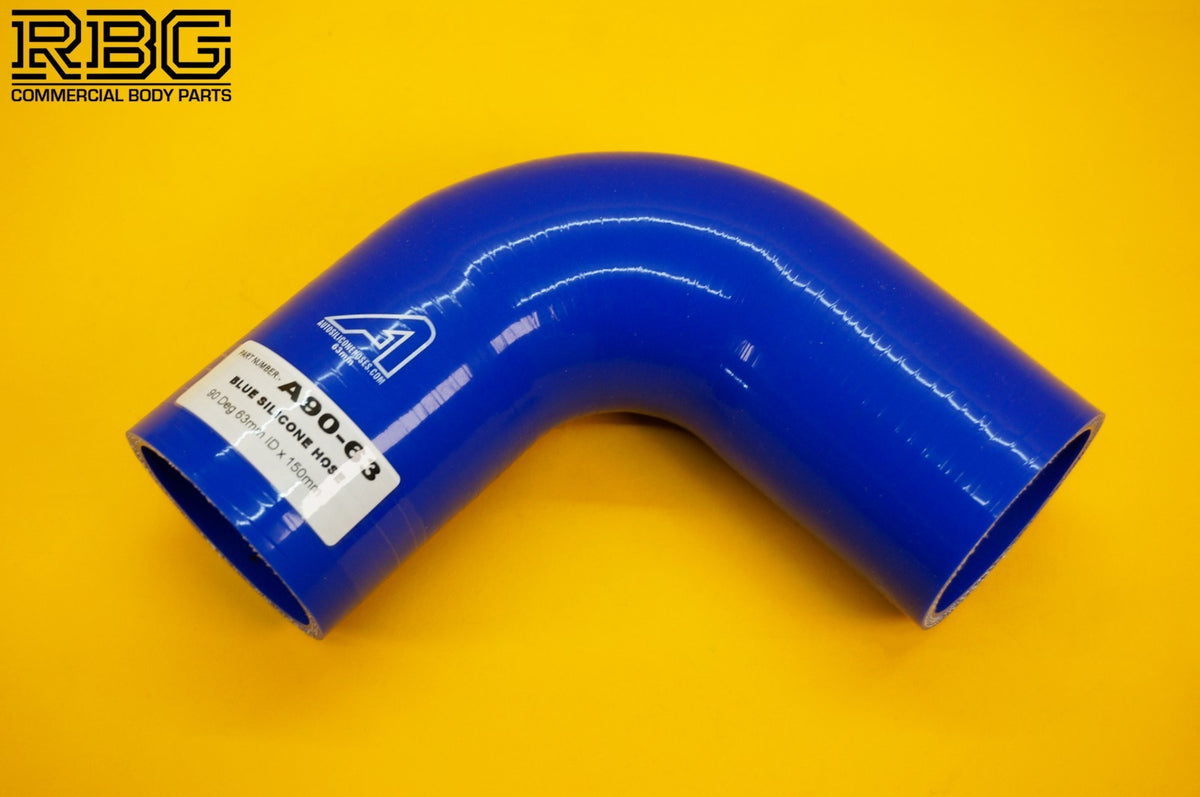

63mm Internal Diameter Silicone Elbow

The 63mm 90 Degree Silicone Elbow Hose features a 74mm outside diameter, 5.5mm wall thickness and 4-ply polyester reinforcement. It has a working pressure rating of 4 bar, a bursting pressure of 12 bar and a specified bending radius of 63mm.

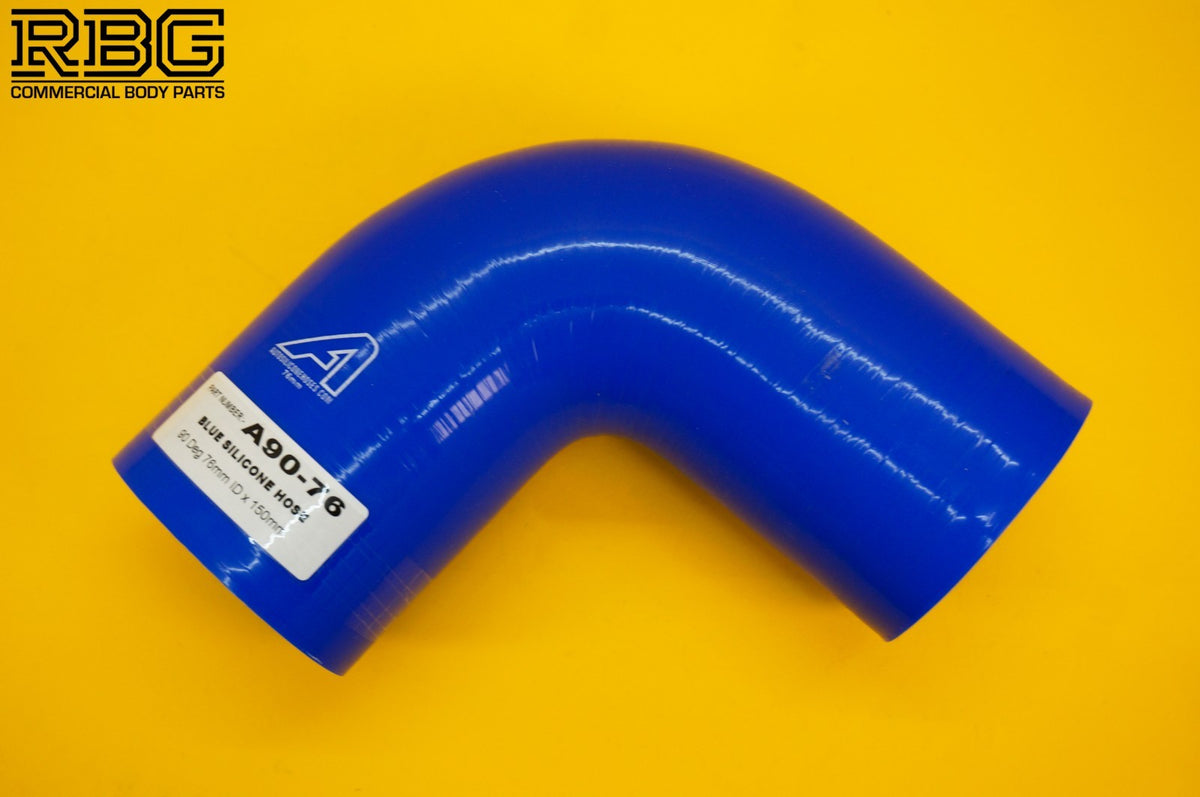

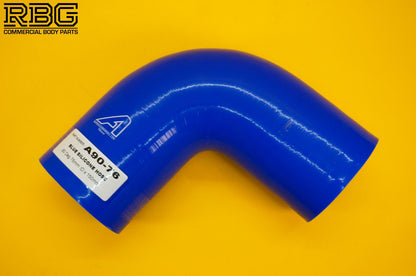

76mm Internal Diameter Silicone Elbow

The 76mm 90 Degree Silicone Elbow Hose features an 87mm outside diameter, 5.5mm wall thickness and 4-ply polyester reinforcement. It has a working pressure rating of 3.5 bar, a bursting pressure of 10.5 bar and a specified bending radius of 65mm.

Important: All three sizes have 150mm leg lengths, but the outside diameter, wall thickness, working pressure, bursting pressure, bending radius and number of reinforcement plies vary according to the selected internal diameter.

General Specifications

• Brand: AutoSiliconeHoses
• Product Type: Reinforced Silicone Elbow Hose
• Hose Design: 90 Degree Bend
• Material: Silicone
• Inner Layer Material: Smooth Extruded Silicone Compound
• Reinforcement: Polyester
• Outer Layer Material: Silicone
• Colour: Blue
• Available Internal Diameters: 32mm / 63mm / 76mm
• Outside Diameters: 41mm / 74mm / 87mm respectively
• Bend Angle: 90°
• Leg Length: 150mm (6") per leg
• Wall Thickness: 4.5mm / 5.5mm depending on size
• Construction: 3-ply / 4-ply depending on size
• Working Pressure: 3.5–5.17 bar depending on size
• Bursting Pressure: 10.5–15.5 bar depending on size
• Bending Radius: 32mm / 63mm / 65mm respectively

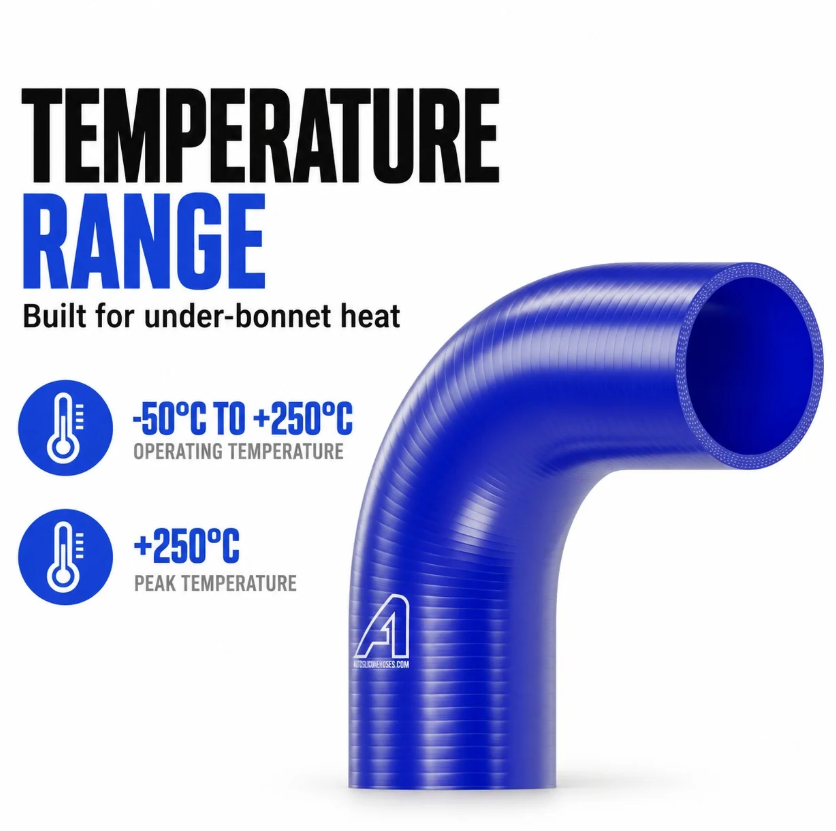

• Temperature Rating: -50°C to +250°C
• Peak Temperature: +250°C
• Safety Factor: 3:1
• Standard: SAE J20 R3
• Bore Type: Smooth
• Application: Compatible Air / Water / Coolant Transfer
• Fitment: Universal by dimensions
• Number of Size Options: 3

Suitable Applications

• Automotive cooling systems
• Radiator hose connections
• Engine coolant hose routing
• Heater and auxiliary cooling systems
• Water transfer systems
• Compatible air intake systems
• Air transfer pipework
• Compatible pneumatic applications
• Industrial fluid handling
• Machinery cooling systems
• Engine bay hose installations
• Custom 90-degree hose connections
• Compact hose routing
• Cars and vans
• Commercial vehicles
• HGVs and trucks
• Agricultural machinery
• Plant and construction equipment
• Motorsport and performance vehicles
• Modified vehicle installations
• Compatible marine cooling systems
• Industrial machinery
• Manufacturing equipment
• Garage and workshop repairs
• Vehicle restoration projects
• Custom engine conversions
• General mechanical and engineering applications

Installation Guide

1. Select the Correct Hose Size

Choose the required 32mm, 63mm or 76mm internal diameter according to the outside diameter of your existing pipework or hose connection.

2. Check Installation Clearance

Ensure there is sufficient space for the 90-degree bend and 150mm leg lengths. Check that the hose can be routed without excessive twisting, stretching or contact with sharp edges.

3. Position the Silicone Elbow

Slide each end of the hose over the appropriate pipe or fitting, ensuring that the connections are fully seated and correctly aligned.

4. Secure with Suitable Hose Clamps

Use correctly sized hose clamps suitable for reinforced silicone hose. Tighten them according to the clamp and fitting manufacturer's recommendations.

5. Inspect the Installation

Check that the hose is securely fitted, free from excessive strain and clear of moving components or unsuitable heat sources. Inspect the connections periodically and check for leaks where applicable.

Important Information

These AutoSiliconeHoses 90 Degree Silicone Elbow Hoses are universal components and are not vehicle-specific replacement parts. Compatibility depends on the selected internal diameter, pipe dimensions, operating temperature, working pressure and the type of fluid or air being transferred.

The available options are 32mm, 63mm and 76mm internal diameter only. Please select the correct size before ordering.

Working pressure ratings are size-specific:

• 32mm: 5.17 bar working pressure / 15.5 bar bursting pressure
• 63mm: 4 bar working pressure / 12 bar bursting pressure
• 76mm: 3.5 bar working pressure / 10.5 bar bursting pressure

The stated 3:1 safety factor reflects the relationship between working and bursting pressures. Bursting pressure is not a permissible operating pressure.

The -50°C to +250°C temperature range includes a maximum peak temperature of +250°C. Continuous operation at this maximum temperature should not be assumed without confirmation of the manufacturer's operating limits.

These hoses should only be used with compatible fluids and operating conditions. Suitability for fuel, oil, aggressive chemicals, food contact or other specialist applications must be separately confirmed before installation.

Supplied as AutoSiliconeHoses Blue 90 Degree Polyester Reinforced Silicone Elbow Hose in your selected size – 32mm, 63mm or 76mm internal diameter. Each hose features a smooth silicone bore, 150mm (6") leg lengths, size-specific 3-ply or 4-ply polyester reinforcement, and a durable blue silicone outer finish. The 32mm option is rated to 5.17 bar, the 63mm option to 4 bar, and the 76mm option to 3.5 bar working pressure. Please select the correct size and confirm your installation dimensions, pressure requirements, temperature limits and fluid compatibility before ordering.

Securely packaged and dispatched same working day if purchased by 1 p.m.
