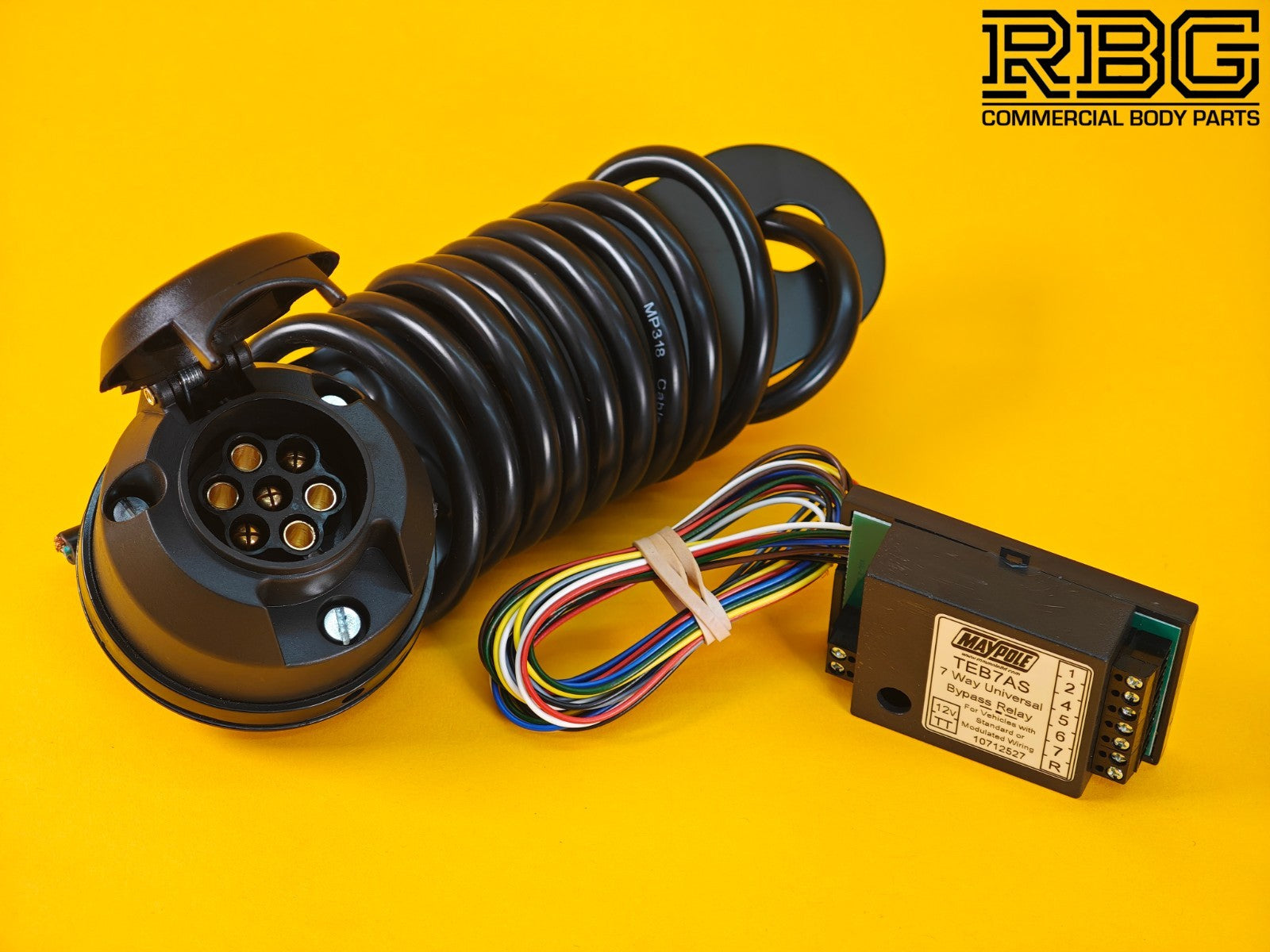

7 Way Bypass Relay + 7 Pin Socket Assembly 12N 2m Wire Towing Trailer Caravan

7 Way Bypass Relay + Socket Assembly – 12N 7 Pin, 2m Cable

This 7 Way Bypass Relay and Socket Assembly is an integrated electrical interface solution intended for 12V trailer and towing applications, enabling correct signal replication between the host vehicle and auxiliary trailer lighting circuits. The assembly is specifically engineered to isolate the vehicle’s original lighting electronics from additional trailer loads, thereby preventing interference with CANBUS systems, bulb failure detection, and onboard diagnostics.

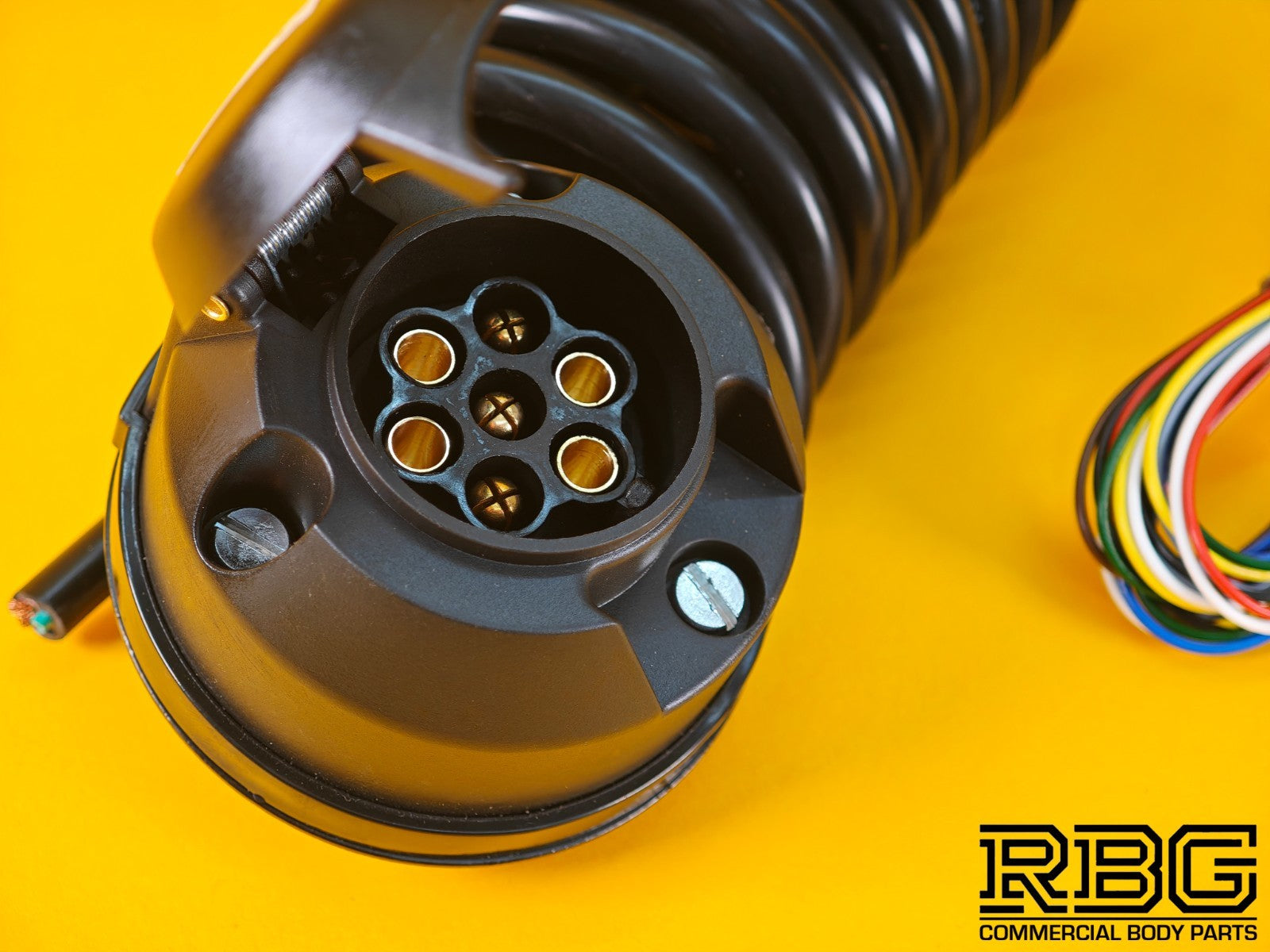

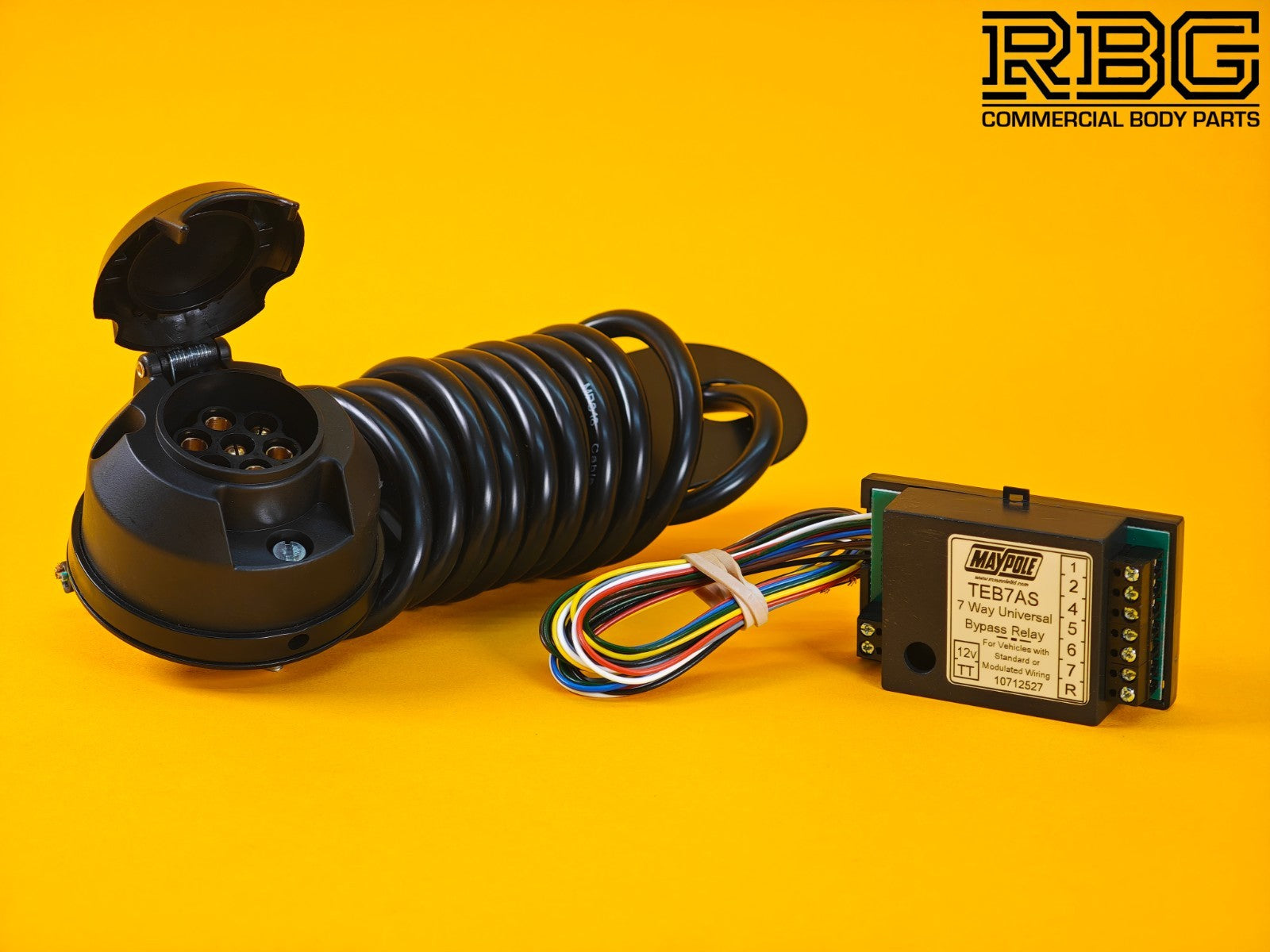

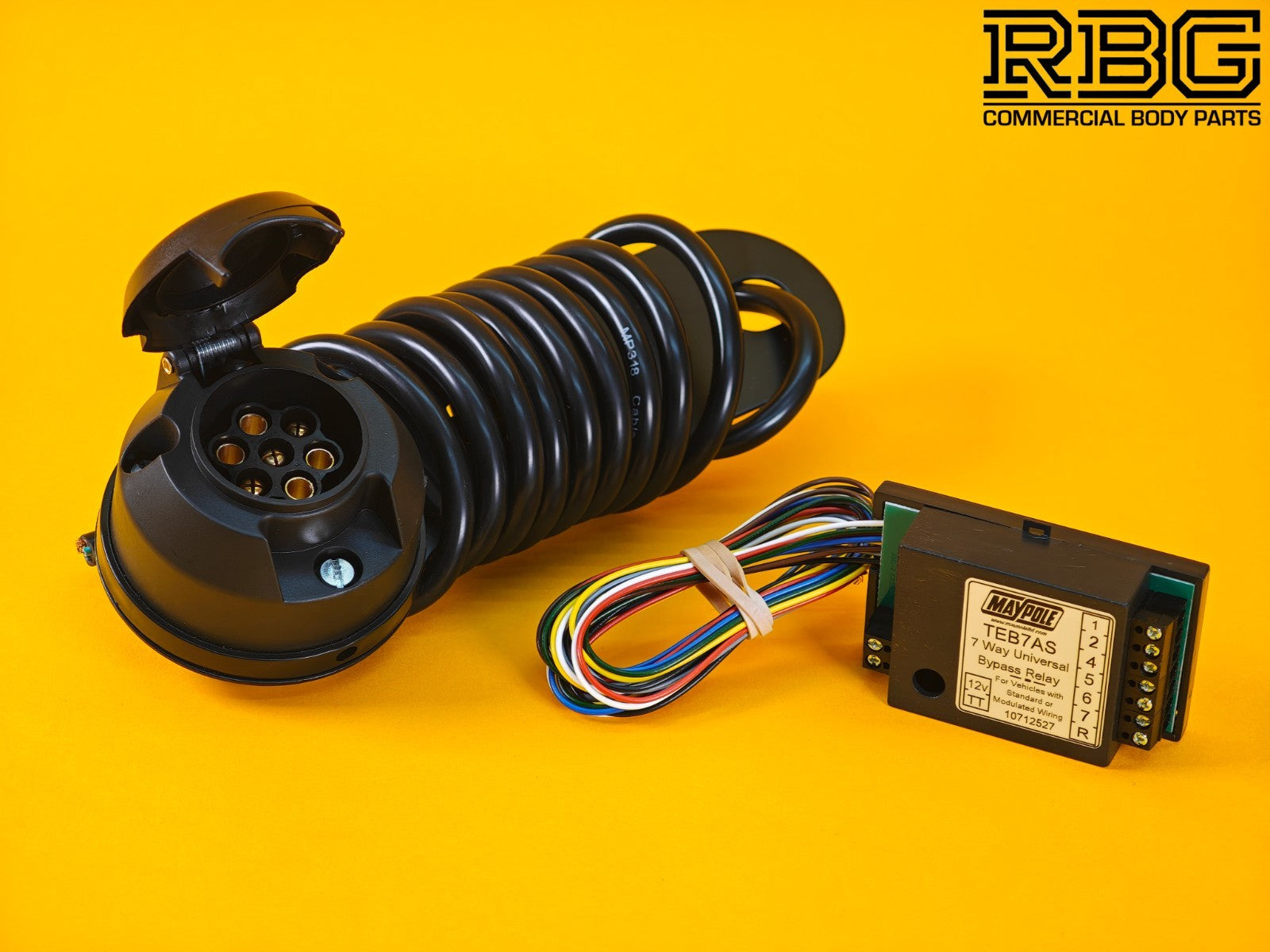

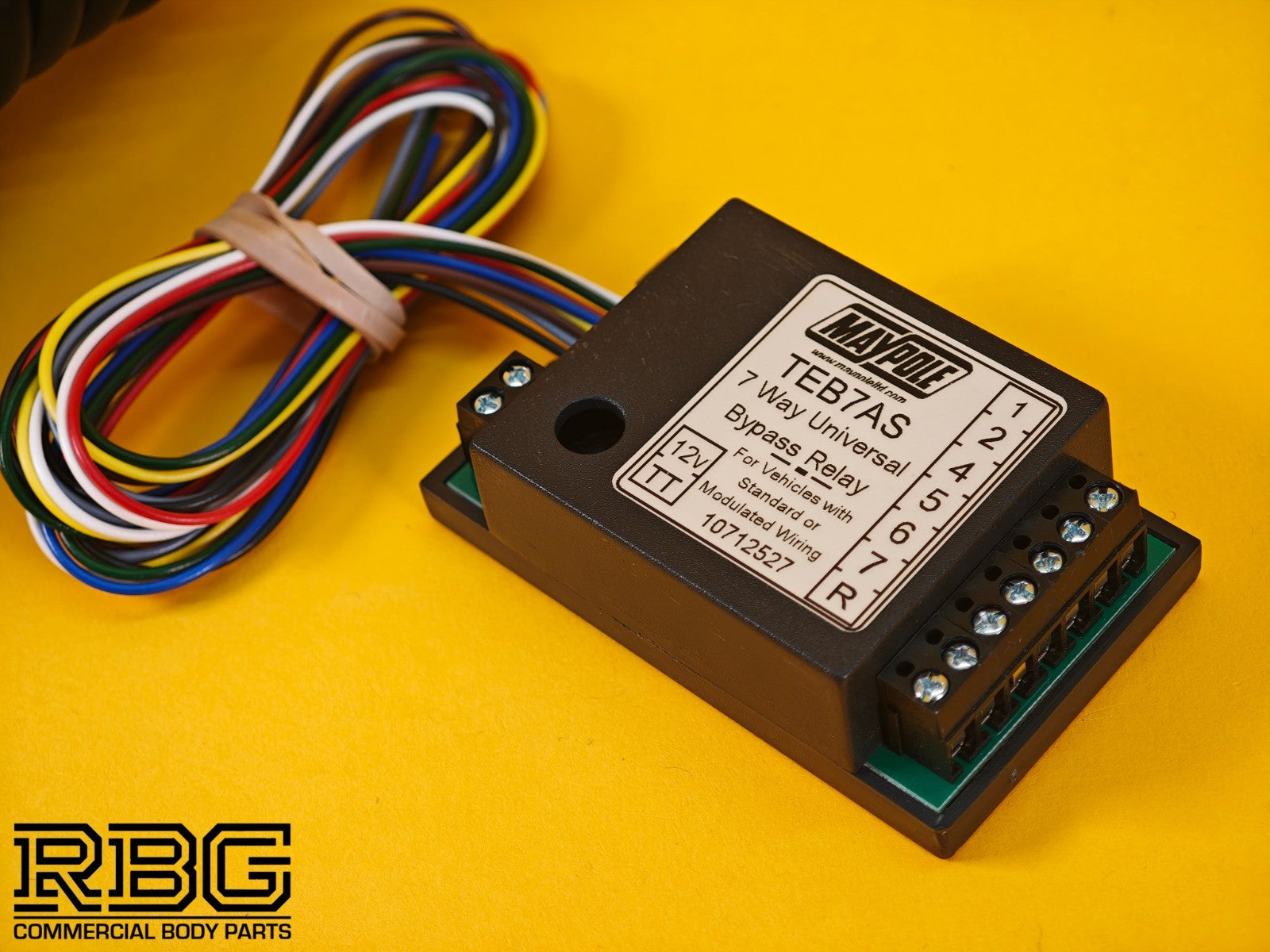

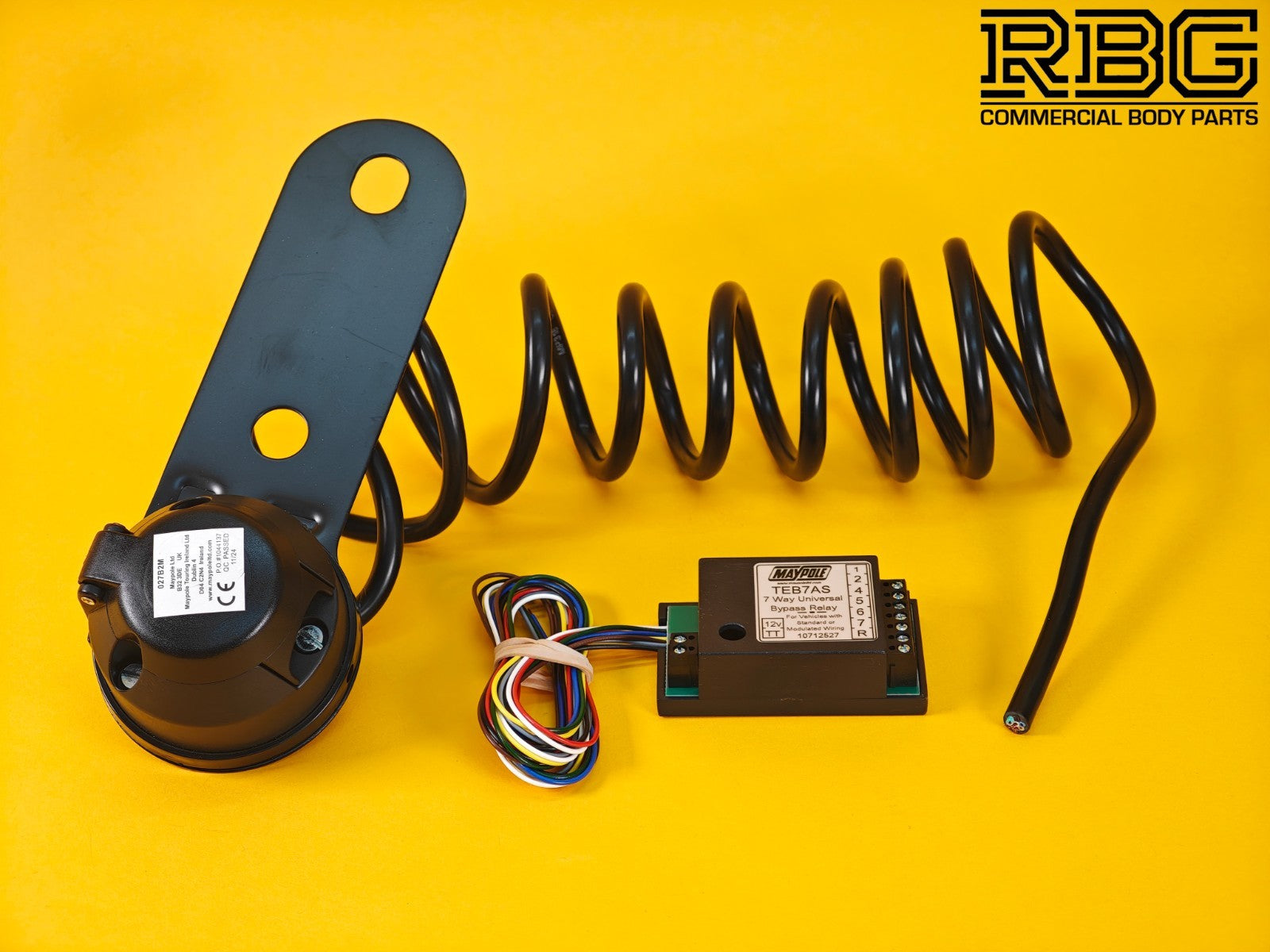

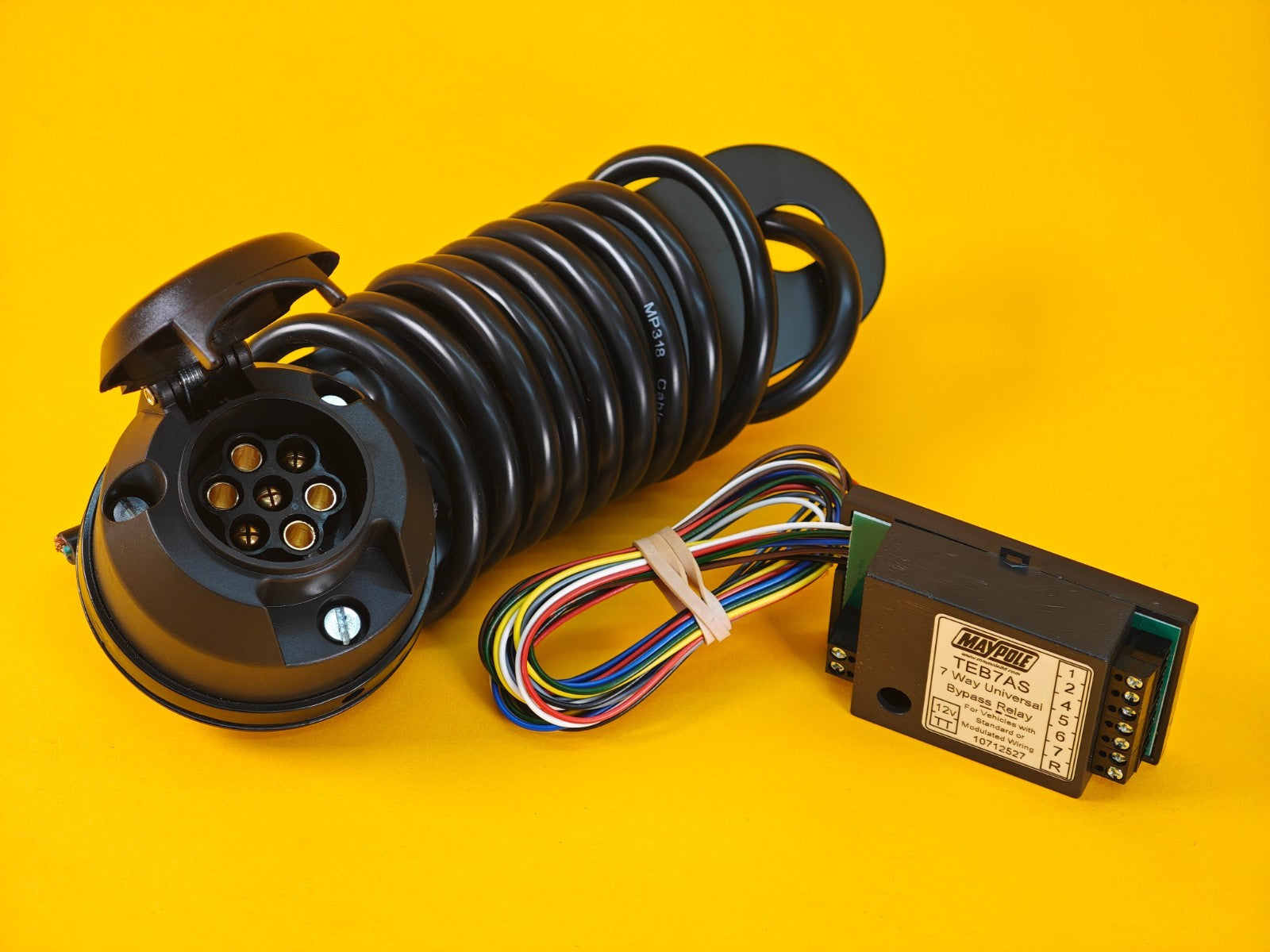

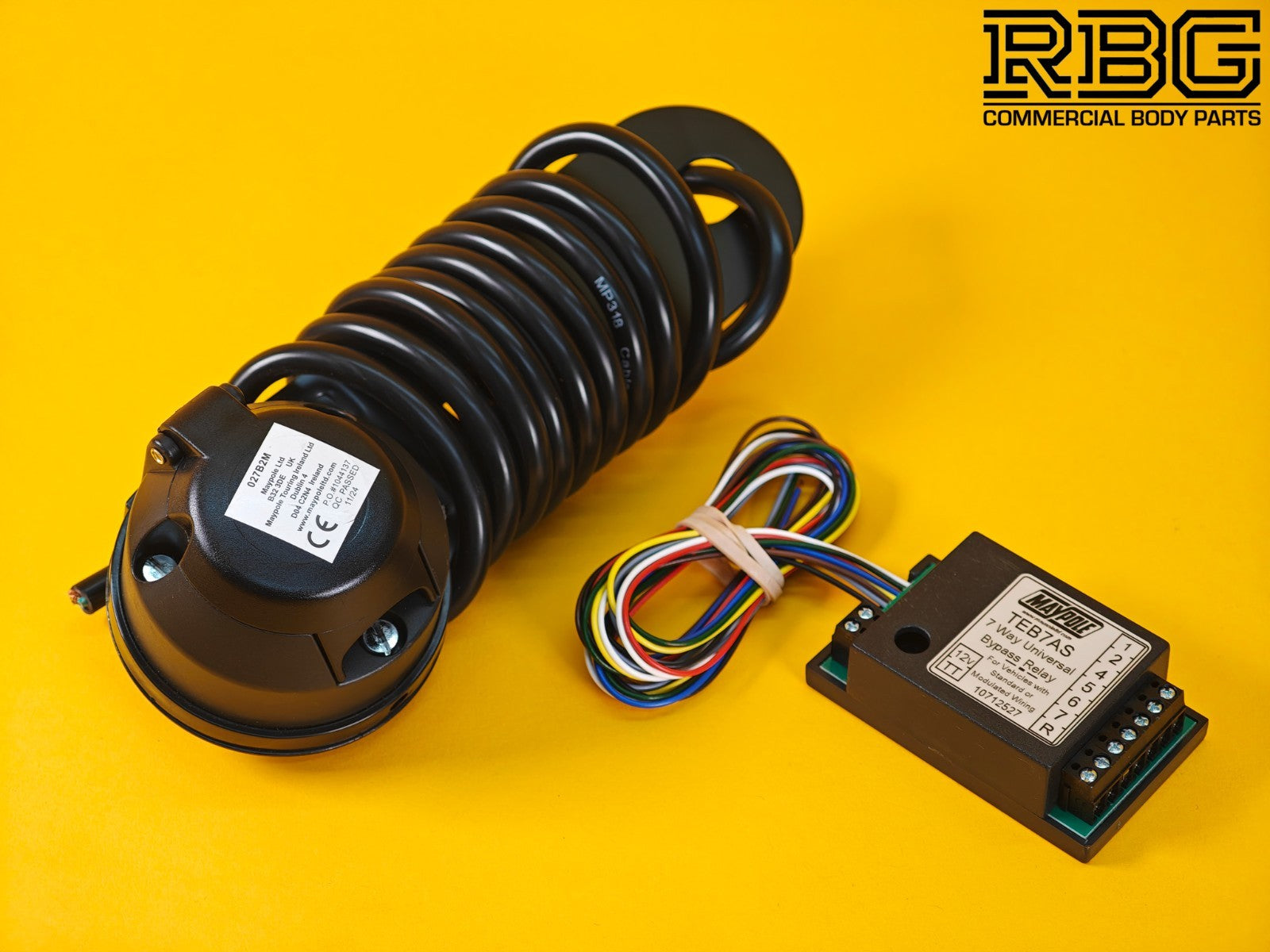

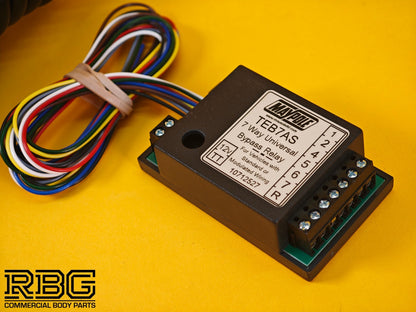

The system comprises a 7-way universal bypass relay module coupled with a pre-terminated 12N 7-pin socket and factory-attached cabling. The relay unit monitors low-current trigger signals from the vehicle lighting circuits and reproduces them via a dedicated power feed to the trailer socket, ensuring stable operation under varying load conditions. The socket housing is finished with a corrosion-resistant ED coating, providing enhanced durability for external mounting in automotive and commercial environments.

Designed for bolt-on installation, this assembly is suitable for trailers, caravans, and commercial body applications where electrical compliance, reliability, and long-term serviceability are required.

Specifications:

• System Type: 7 Way Universal Bypass Relay with Socket Assembly

• Operating Voltage: 12 V DC

• Relay Output Channels: 7 Way

• Relay Cable Length: 55 cm

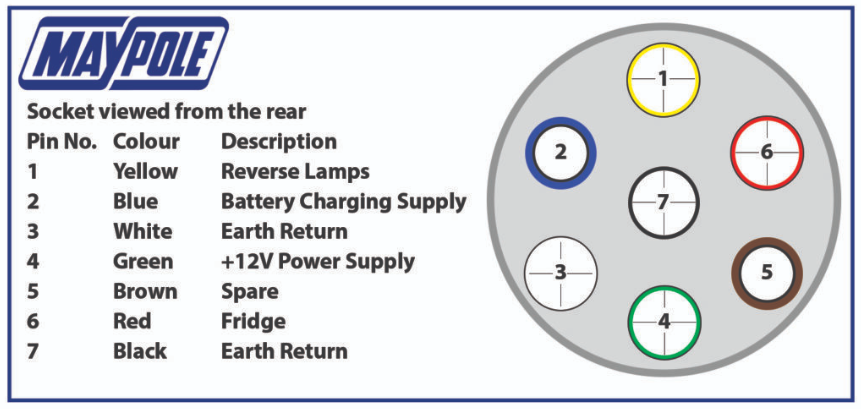

• Socket Standard: 12N 7 Pin

• Socket Cable Length: 2 m

• Socket Cable Construction: 7 Core

• Socket Surface Treatment: Corrosion-resistant ED coating

• Mounting Method: Bolt-on

• Intended Application: Trailer, caravan, and towing lighting systems

Securely packaged and dispatched same working day if purchased by 1 p.m.
